Description

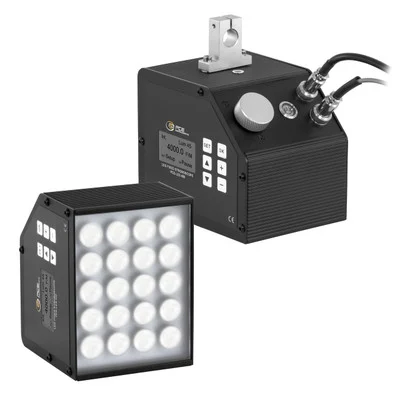

PCE Instruments Stroboscope Light (PCE-LES 400) is a high-precision, energy-efficient device designed for continuous industrial monitoring and motion analysis. With a measurement range of 50 to 36,000 FPM and a high-resolution of 0.1 FPM, this stroboscope provides accurate results in a variety of applications, from quality control to scientific research.
The PCE Instruments Stroboscope Light features 20 high-intensity LEDs, producing 1590 lux at 36,000 FPM from a 10 cm distance. Its versatile functionality allows for internal and external triggering, along with an adjustable phase shift of 0 to 359 degrees.
- Specifications and Dimensions
- Flash Frequency: 50 to 36,000 FPM
- Resolution: 0.1 FPM
- Accuracy: ±0.01% of measured value
- Flash Units: FPM, Hz, m/min
- Light Source: 20 high-power LEDs
- Illuminance: 1590 lux at 36,000 FPM / 10 cm
- Phase Shift: 0 to 359 degrees
- Pulse Width: 1 to 3%, max. 100 µs
- Trigger Input:2.5V peak, min. pulse width 20 µs
- Display: 2.4-inch graphic LCD
- Power Supply: 220V AC, 50Hz
- Device Weight: 1280 g / 2.82 lbs
- Device Dimensions: 150 x 115 x 130 mm
- Operating Temperature: 0 to 50°C
- Key Features and Benefits
- Precision LED stroboscope for industrial monitoring and quality control
- High-power LED light source for enhanced visibility
- Wide flash frequency range for accurate motion analysis
- Adjustable phase shift for precise synchronization
- Internal and external trigger options for flexible operation
- 2.4-inch LCD display for easy navigation
- Compact and easy to mount with aluminum slot profile
- Ideal for production lines, research facilities, and diagnostic applications
