Description
PCE Instruments HVAC Meter is a fixed installation device designed for measuring flow rates using ultrasonic technology. It is capable of detecting flow velocities from ±0.1 m/s to ±5 m/s, making it suitable for various applications such as heating systems, cooling water circuits, and industrial processes.
The device supports both analog (4-20mA) and digital (RS485) data output, allowing integration with control systems. Designed for long-term use, the meter operates with a power supply range of 9-36V DC and includes a 2-meter connection cable and coupling pads for optimized signal transmission.
- Specifications and Dimensions
- Measurement Range: ±0.1 m/s to ±5 m/s
- Resolution: 0.001 m/s
- Accuracy: ±2%
- Display Type: OLED
- Analog Output: 4-20mA
- Data Interface: RS485
- Power Supply: 9-36V DC
- Compatible Pipe Materials: PVC, Steel, Stainless Steel, Copper, PVDF, PFA, PTFE, PU, Aluminum
- Measuring Mediums: Water, Seawater, Oil, User-defined (manual input of sound velocity)
- Protection Class: IP54
- Weight: 515 g
- Device Weight with Accessories: 652 g
- Device Weight with Packaging: 892 g
- Device Dimensions (L x W x H): 110 x 58 x 67 mm
- Packaging Dimensions (L x W x H): 210 x 153 x 104 mm
- Operating Conditions: 0 to 50°C, <95>
- Storage Conditions: 0 to 50°C, <95>
- Key Features and Benefits
- Uses ultrasonic technology for accurate flow measurement
- Measures both flow velocity and volume flow in real-time
- Compatible with various pipe materials and liquid media
- Supports analog (4-20mA) and digital (RS485) data transmission
- OLED display provides clear readings with time and date
- Includes a 2-meter connection cable and coupling pads
- Compact design allows quick and easy installation

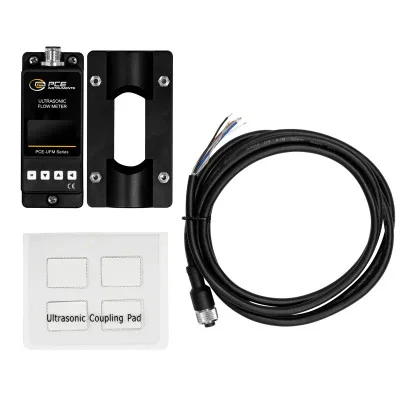

- Includes
- 1 x Fixed Installation HVAC Meter
- 1 x 2m Connection Cable
- 4 x Coupling Pads
- 1 x User Manual
