Description

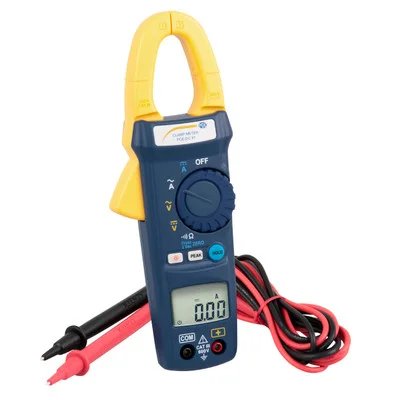

PCE Instruments Digital Clamp Meter (PCE-DC 41) is a reliable tool for measuring AC/DC voltage, current, and electrical resistance. With a measurement range of up to 600V and 600A, it offers both contact and non-contact testing, making it an essential device for electricians and technicians.
Designed for ease of use, the clamp meter features a backlit 4-digit display for clear readings. The peak-hold and data-hold functions allow users to freeze measurements for better analysis.
- Specifications and Dimensions
- Voltage Measurement: 600V AC/DC
- Current Measurement: 600A AC/DC
- Electrical Resistance: Up to 1000Ω
- Clamp Opening: Ø 25 mm (0.1 in)
- Display: 4-digit LCD with backlight
- Data Hold and Peak Hold Function
- Power Supply: 2 x 1.5V AAA batteries
- Auto Power Off: 30 minutes of inactivity
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -10°C to 60°C (14°F to 140°F)
- Dimensions: 210 x 62 x 36 mm (8.26 x 2.44 x 1.41 in)
- Weight: 273 g (0.6 lbs) with batteries
- Key Features and Benefits
- Measures AC/DC voltage, current, and resistance with high accuracy
- Non-contact measurement via clamp mechanism for convenience
- Continuity check with buzzer function for easy diagnostics
- Data-hold and peak-hold functions to freeze readings
- Automatic power-off function to preserve battery life
- Includes
- 1 x Clamp Meter PCE-DC 41
- 1 x Measuring Leads
- 2 x AAA Batteries
- 1 x Carrying Case
- 1 x Instruction Manual
