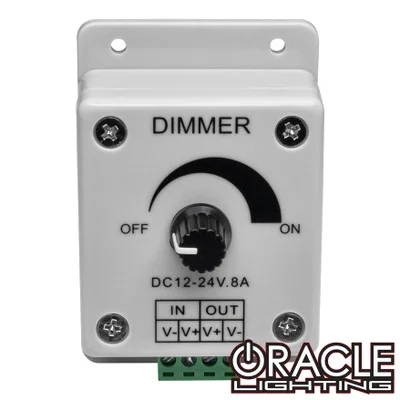

Oracle Lighting LED Dimmer Switch – Potentiometer (1708-001)

Description

Oracle Lighting LED Dimmer Switch – Potentiometer (1708-001) is a universal single color LED dimmer. It can dim any 12V to 24V LEDs from 0%-100% brightness using a circuit control knob. The switch has screw terminal connections for power in and out and a maximum load of 8 Amps. Always observe proper polarity when connecting power and load.

The Oracle Lighting LED Dimmer Switch is designed for indoor use only and is not waterproof or weatherproof. It provides precise control over LED brightness, making it an essential component for any LED lighting setup.

• Specifications and Dimensions
  • Supply Voltage: DC 12~24V
  • Length: 3.5 in
  • Width: 2.3 in
  • Height: 1.4 in
  • Weight: 3.0 oz
  • Max load current: 8 Amps
  • Output: 1 channel
  • Working temperature: -4~140F
  • Static power consumption: < 1 Watt
  • Output Power: 96 Watts
  • Function: Dim LEDs from 0~100% brightness



• Key Features and Benefits
  • Universal single color LED dimmer
  • Adjust brightness from 0% to 100%
  • Easy screw terminal connections
  • Suitable for indoor use only
  • Perfect for single color SMD strips
