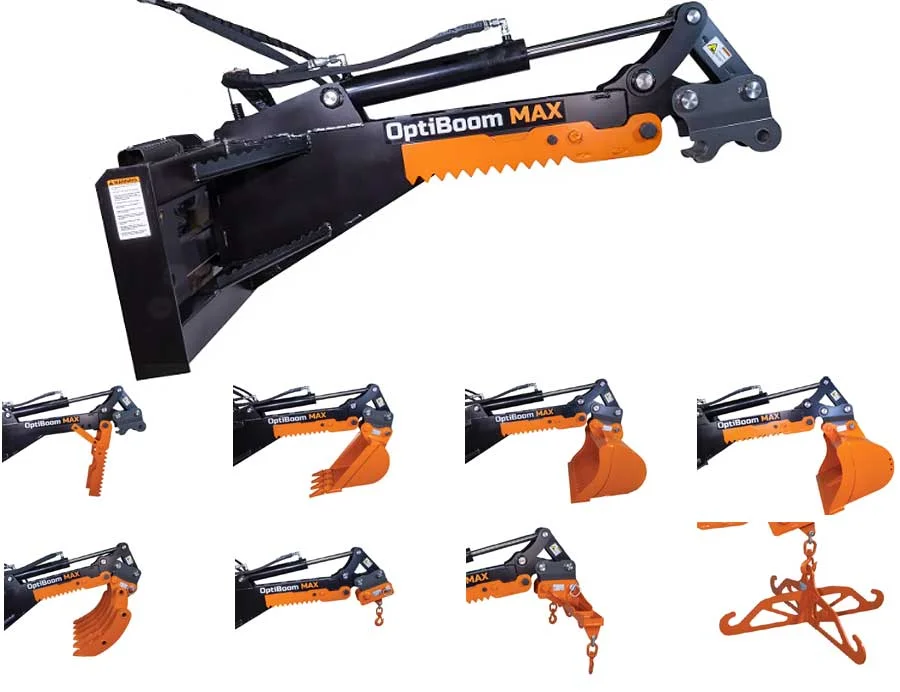

OptiBoom Max Multi Tool Backhoe Attachment Lowe

Description

Our new innovation’s foundation is designed to lift your skid steer to new levels. Constructed from heavy-grade, Grade 50 steel with a robust box beam design and heavy-duty universal mount, it offers unmatched strength and dependability. No longer do you have to make do with compromises and restrictions—OptiBoom MAX has been designed to handle even the roughest terrain and haul even the biggest loads with ease.

OPTIONS

Thumb Attachment:

Multi-Position Thumb: Offers four resting positions for optimal control and rigidity.
Rapid Adjustment: Three pin settings allow for quick and precise thumb angle modifications.
Robust Construction: Built with heavy-duty ½” GR50 serrated side plates and hardened steel bushings for exceptional durability.
Compact Storage: Folds neatly against the boom, ensuring compatibility with other attachments.
Superior Grip & Lift: Capable of securely handling objects up to 24” in diameter when used with a trenching bucket.

Trenching Bucket:

Versatile Tooth Attachment: Choose weld-on or bolt-on types for easy customization. With interchangeable J200 teeth, a popular choice for excavators, with shank tips welded or bolted securely to the bucket.
Reinforced Steel Bushings: Engineered with more strength to reduce wear in critical stress points.
Unmatched Strength and Wear Resistance: Constructed with ¼” GR50 steel plates that are stronger and more wear-resistant.
Bottom Cutting Edge: Available in ¾” x 6” (WOT) or ¾” x 8” (BOT) for precise digging.
Side Cutting Edge: Integrated ½” x 3” edges enable clean and accurate trenching.
Center Rib Reinforcement: Enhances structural stiffness to counteract buckling under severe conditions.
Rapid Attachment System: Replace attachments in under three minutes with a one-person, one-pin operation.

Skeleton Bucket

Heavy-Duty Construction: Engineered with 3/16” GR50 steel side plates for superior wear resistance, reinforced by 3/8” side plates for enhanced durability and extended lifespan.
Increased Stability: A welded box beneath the top hangers boosts lateral stability, preventing twisting and deformation under heavy loads.
Reinforced Structural Integrity: Top hanger gussets and center rib reinforcements fortify key stress points. The 5/16” thick center ribs with a 2-1/2” web height minimize flexing, ensuring optimal control and strength.
Optimized Sifting Efficiency: 2” rib spacing enables effective material separation, enhancing sorting accuracy while minimizing waste.
High-Performance Cutting Edge: Equipped with a ¾” x 6” bottom cutting edge, delivering exceptional durability and prolonged operational life.
Wear-Resistant Bushings: Hardened steel bushings provide superior resistance to high-stress conditions, maximizing longevity and performance.
Rapid Attachment Mechanism: Features a single-pin quick-connect system for seamless attachment and removal in under three minutes, improving efficiency and ease of use.

Ditching Bucket

Rugged Steel Construction: Crafted from 3/16” GR50 steel for exceptional wear resistance and durability.
Reinforced Box Frame: A welded box beneath the top hangers enhances lateral rigidity, preventing twisting and deformation under heavy loads.
Strengthened Hangers: Top hanger gussets and external center reinforcements fortify critical attachment points for added durability.
Side Plate Reinforcement: 3/8” reinforced side plates ensure structural integrity, allowing the bucket to withstand demanding tasks.
Efficient Drainage System: Center rib and end plate drainage holes facilitate fluid and slurry expulsion, maintaining peak performance.
Durable Hardened Bushings: Designed to endure high-stress conditions, these bushings enhance wear resistance, extending service life and reducing maintenance.
Robust Cutting Edge: Features a ¾” x 6” bottom cutting edge for maximum durability and prolonged operational efficiency.
Fast Attachment System: Quick and hassle-free connection using a single-pin mechanism, enabling tool changes in under three minutes with minimal effort.

Rake

Robust Construction: Crafted from ½” thick GR50 steel on all tines, delivering exceptional strength and wear resistance.
High-Durability Bushings: Hardened steel bushings enhance longevity and withstand high-stress conditions for extended performance.
Optimized Tine Spacing: Precisely designed 6 ¼” spacing between tines allows for efficient material handling and separation.
Reinforced Cross Tubes: 1.9” diameter heavy-duty cross tubes provide superior strength and rigidity to maintain structural integrity.
Strengthened Hanger Gussets: Reinforced gussets at the pin locations eliminate flexing and ensure even force distribution.
Full-Length Welds: Continuous welds throughout the rake maximize durability and structural reliability under demanding conditions.

Point Liftkey

Adaptive Pivoting Mechanism: Enables flexible attachment and precise lifting control for handling various heavy loads efficiently.
Rugged Steel Construction: Manufactured from ⅜” GR50 steel plate for superior strength, durability, and long-term reliability.
High-Capacity Lifting: Supports up to 4,000 lbs. (2 tons), making it ideal for managing heavy and irregularly shaped loads with ease.
Fast and Simple Attachment: Quick-attach system allows for effortless connection, detachment, or swapping in under three minutes with a single pin.
Optimized for Multipoint Lifting: Designed for lifting bags, nets, and super sacks, ensuring even weight distribution and enhanced safety.

Spreader Bar

Multiple Lifting Options: Features a center welded pad eye, dual inner lifting D-rings, and dual outer hooks for versatile material handling.
High Lifting Capacity: Supports up to 4,000 lbs. (2 tons), making it ideal for heavy-duty lifting applications.
Rugged Construction: Built from 3/8″ GR50 steel with reinforced C-channel for exceptional strength and durability.
Reinforced Hangers: Double-gusseted hangers enhance rigidity at lifting points, ensuring secure and stable load handling.
Flexible Mounting Options: ¾” thick pad eyes allow for various lifting configurations to accommodate different applications.
Quick-Connect System: Attaches and detaches in under three minutes using a single-pin mechanism for fast and efficient operation.

Single Clevis

High Lifting Capacity: Supports up to 4,000 lbs. (2 tons), making it ideal for lifting heavy loads with ease.
Compact & Stable Design: Engineered for precise control, ensuring secure and steady lifting operations.
Heavy-Duty Construction: Built with 3/8” GR50 steel plates, hardened steel bushings, and a ¾” thick pad eye for superior wear resistance and durability.
Versatile Lifting Hook: Includes a 2-ton WLL hook with a clasp and shackle, accommodating a wide range of lifting applications.
Reinforced Hanger Design: Double-gusseted hangers enhance rigidity at critical load-bearing points for increased strength and reliability.
Fast & Easy Attachment: Quick-attach system allows for effortless connection and detachment in under three minutes using a single pin.
