Description

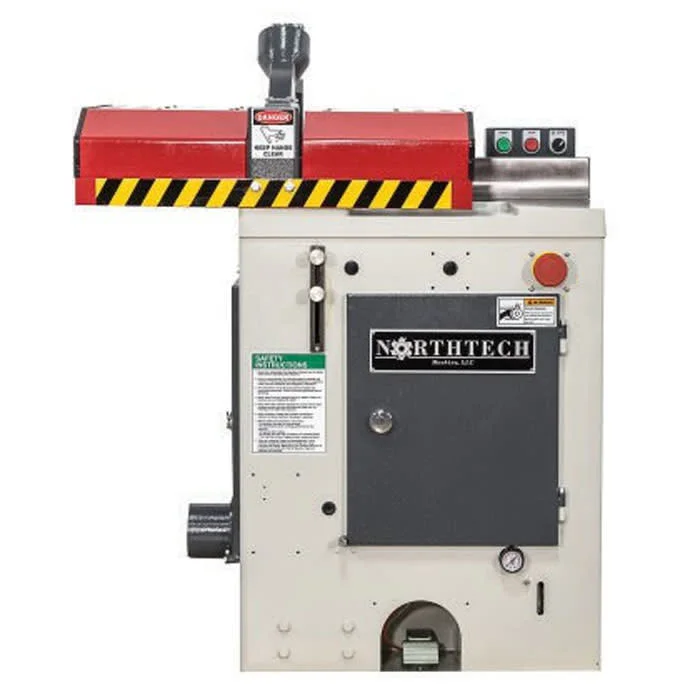

The Northtech NT-UCS18 is a robust, high-performance up cut saw engineered for precision cross-cutting in professional woodworking environments. With its powerful 10HP motor, pneumatic operation, and industry-leading dust control, this machine delivers clean, accurate cuts at speeds up to 45 cycles per minute while maintaining superior cut quality and operator safety.
Key Features & Benefits
Powerful & Efficient Performance
- 10HP motor operating at 3600 RPM for fast, clean cuts through various materials.
- Pneumatically adjustable cycle operation up to 45 cycles per minute for high-volume production.
- Maximum cutting capacity accommodates stock up to 4″ x 10″ and as thin as 1″ x 13″.
- 18″ diameter, 120-tooth tungsten carbide tipped blade included for superior cut quality.
Superior Cut Quality
- Unique slotted T-clamp design enables full fence with zero kerf blade clearance.
- Only up cut saw available with a replaceable backer to prevent blowout on panel faces.
- Backer prevents cut-offs from entering blade chamber, protecting blade and ensuring clean cuts.
- Replaceable backer can be changed in minutes to maintain optimal cut quality.
- Quick hood adjustment allows operator to set minimum clearance over workpiece for increased productivity and safety.
Industry-Leading Dust Control
- Full cavity enclosure captures dust at the source for cleaner operation.
- Dual 4″ dust ports requiring 436 CFM at point of extraction eliminate dust accumulation.
- Brushes fitted around arbor allow unrestricted blade movement while keeping dust contained.
- Second dust port collects chips as blade clears top face of material for maximum dust capture.
- No more piles of dust under the saw means cleaner shop environment.
Enhanced Safety Features
- Front-mounted emergency stop for quick access shuts electrical power and terminates air supply.
- Full guard with clear view windows protects operator while maintaining visibility at cut zone.
- Double-action cylinder ensures part is secured before blade begins cut.
- UL/CE certified electrical components housed in dustproof enclosure.
- Quiet operation at 78dB standalone sound level.
User-Friendly Operation
- Foot pedal control for hands-free operation.
- Blade cycle adjustment easily controlled from front of machine via quick-lock knobs.
- Adjustable fence measures 2″ x 25″ for versatile workpiece positioning.
- Compact table size of 26″ x 27-1/4″ fits in space-constrained shops.
- Control center with pneumatic shutoff, filter, lubricator, and regulator.
Reliable Construction
- All machines tested stateside prior to shipment for trouble-free startup.
- Operation and parts manual included.
- One-year parts warranty.
- Net weight 730 lbs, gross weight 860 lbs for stable operation.
- Machine dimensions: 26″ x 28″ x 50″.
Electrical Requirements
- 3-phase power: 230V/460V, 60Hz.
- Amperage: 24A at 230V or 12A at 460V.
- 24V magnetic controls for reliable operation.
- 1″ saw arbor diameter.
