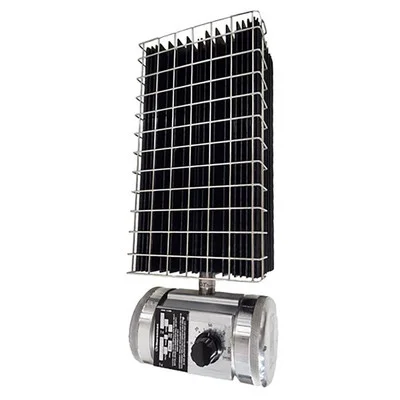

Norseman 750W 120V T2D Convection Heater w/T‘stat (XB1-3075T2D11T)

Description

The Norseman 750W 120V T2D Convection Heater w/T’stat (XB1-3075T2D11T) is a specialized heating solution engineered to operate safely and effectively in hazardous industrial and commercial environments. Designed and manufactured by Thermon Heating Systems, this unit provides essential warmth in areas where the presence of flammable gases, vapors, liquids, or combustible dusts necessitates explosion-proof equipment. Its natural convection design ensures quiet, fan-free operation, making it suitable for a variety of critical applications.

KEY FEATURES AND BENEFITS:

• Explosion-Proof Safety: Certified for Class I, Division 1 & 2, Groups A, B, C & D; Class II, Division 1 & 2, Groups E, F, G; and Class III, Division 1 & 2, ensuring safe operation in environments with explosive atmospheres. This comprehensive certification provides the assurance required for sensitive industrial applications.
• Integrated Thermostat Control: Features an externally adjustable thermostat, allowing for precise temperature management within the heated space. This provides users with the ability to maintain optimal conditions and reduce energy consumption.
• Natural Convection Heating: Utilizes the principle of natural convection to distribute heat. This fan-less design results in quiet operation, no moving parts, and efficient heat transfer without disturbing sensitive equipment or creating air currents that could disrupt processes.
• Robust Construction: Built with a unique copper-free aluminum extruded convector and a patented x-Max® terminal housing. These components contribute to the heater’s long operational life and ability to withstand challenging industrial conditions. The black anodized convectors resist oxidation and maximize heat transfer efficiency.
• Versatile Mounting: Supplied with dual-purpose brackets that allow for both wall and floor mounting. This flexibility simplifies installation and integration into various facility layouts. Wire guards are also included as a standard safety feature.

SPECIFICATIONS:

• Wattage: 750 Watts
• Voltage: 120V
• Heat Output: 2,559 BTU/hour
• Amperage: 6.25 Amps
• Dimensions (L x W x H): 8.5 x 6.75 x 16.75 inches
• Product Weight: 15 lbs
• Temperature Code: T2D
• Operating Temperature Range (Ambient): -40°F (-40°C) to 104°F (40°C)
• Installation: Hardwired

HOW TO USE:

1. Preparation: Before installation, ensure the power supply to the intended location is off at the circuit breaker. Confirm that the mounting surface (wall or floor) is stable and can support the heater’s weight.
2. Mounting: Using the supplied dual-purpose brackets, securely mount the heater in a vertical position. Ensure adequate clearance around the heater for proper air circulation as specified in the installation manual. Attach the wire guards as per instructions.
3. Wiring: The heater requires hardwiring. Route appropriate electrical conduit into the x-Max® terminal housing. Connect the heater’s electrical wires to the power supply according to the wiring diagram provided in the product manual and local electrical codes. All wiring should be performed by a qualified electrician.
4. Power On: Once wiring is complete and inspected, restore power to the circuit.
5. Thermostat Setting: Locate the externally adjustable thermostat. Turn the thermostat dial to the desired temperature setting. The heater will activate to reach and maintain this temperature.
6. Monitoring: Periodically check the heater’s operation to ensure it is functioning correctly and maintaining the desired temperature. Refer to the user manual for any troubleshooting or maintenance instructions.

BENEFITS OF USING NORSEMAN 750W 120V T2D CONVECTION HEATER W/T’STAT (XB1-3075T2D11T):

• Provides heating in sensitive areas without compromising safety protocols, crucial for compliance in hazardous environments.
• Contributes to worker comfort and process stability by maintaining consistent temperatures.
• Offers a heating solution that integrates seamlessly into existing infrastructure due to its adaptable mounting options.
• Reduces the need for frequent servicing due to its robust design and lack of moving parts.
• Enhances operational efficiency by ensuring critical equipment and processes are kept at optimal temperatures.

FEATURES:

• CSA certified for operation in Class I, II, and III hazardous locations.
• Equipped with a self-regulating internal thermostat for precise temperature management.
• Constructed with a patented x-Max® terminal housing for simplified electrical connections.
• Designed with black anodized aluminum convectors to maximize heat radiation and resist corrosion.
• Includes integral dual-purpose brackets for flexible installation on walls or floors.
• Fan-less operation ensures a quiet working environment and prevents dust disturbance.
• Capable of operating reliably in a wide range of ambient temperatures, from extreme cold to moderate heat.
• Features a streamlined profile, allowing for installation in confined or space-restricted areas.
• Built to meet rigorous industrial standards, ensuring long-term operational integrity.
• Provided with protective wire guards to prevent accidental contact with the heating surface.
