Milton 1139-1 1/4 FNPT Electronic Compressor Tank Drain

Description

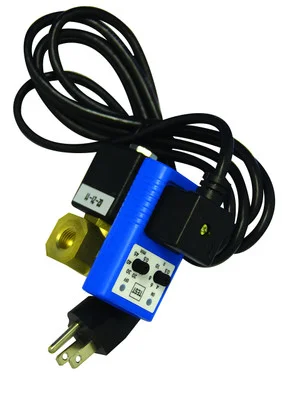

Milton 1139-1 1/4 FNPT Electronic Compressor Tank Drain

This compressor tank drain is electronically adjustable to drain compressor tank automatically in order for it to deliver dry air. The two 2 way direct acting 1/4″ FNPT valves are made of forged brass and have a manual test switch. Mountable in any position, this tank drain has a 6′ 1/2″ power cord and offers voltage of 115 volts / 1 phase / 60 Hz. Offers a working pressure range of 0 to 230 PSI.

• 1/4″ female national pipe thread
• Working pressure range of 0 to 230 pounds per square inch
• Temperature range of 40 degrees Fahrenheit to 140 degrees Fahrenheit
• Discharge interval adjustable from .5 to 45 minutes
• Discharge duration adjustable from .5 to 10 seconds

Specifications:

• Brand: Milton
• Model: 1139-1
• Length (cm): 14.7
• Width (cm): 10.9
• Height (cm): 8.6
• Weight (g): 45
