Description

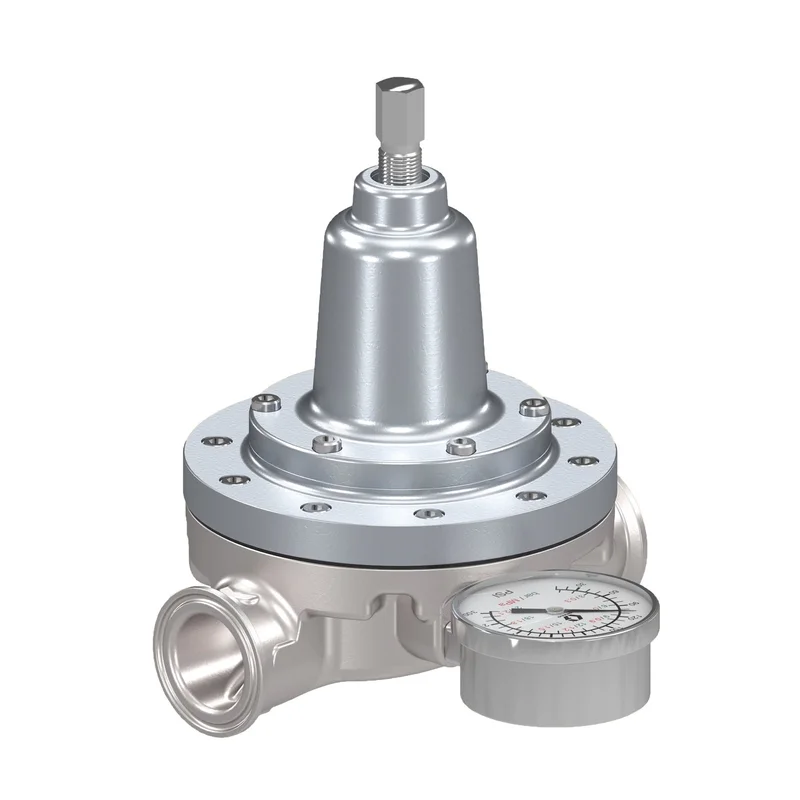

Graco’s low shear back pressure regulator (BPR) minimizes shear and prevents paint degradation so that manufacturers produce consistent finish quality.
- Innovative flow path geometry provides industry-leading low shear capability
- Ultralife series ceramic coated seat and flow directors significantlyincrease wear resistance capability and service life
- Best-in-class performance holds pressure constant while flow rate changes
UPC Product: 00769946065916 Family Code: FAMCNV Unit of Measure: EA Height: 6.5 IN |16.51 CM Length: 13 IN |33.02 CM Width: 8.25 IN |20.955 CM Volume: .403 FT3 |.011 M3 Chargeable Weight: 10.6 LBS | 4.81 KG
Technical Specifications
| Compatible Material | Waterborne, Solventborne |
|---|---|
| Gauge Port Size (cm) | 0.635 |
| Gauge Port Size (in) | 1/4 |
| Gauge Port Size (mm) | 6.35 |
| Gauge Port Type | NPT |
| Inlet Size (cm) | 3.8 |
| Inlet Size (in) | 1.5 |
| Inlet Size (mm) | 38 |
| Inlet Thread Type | Sanitary Flange |
| Maximum Flow Rate (GPM) | 25 |
| Maximum Flow Rate (L/min) | 95 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Maximum Regulated Pressure (bar) | 17.6 |
| Maximum Regulated Pressure (kg/cm²) | 17.6 |
| Maximum Regulated Pressure (kPa) | 1724 |
| Maximum Regulated Pressure (psi) | 250 |
| Maximum Viscosity (cP) | 1000 |
| Maximum Working Pressure (bar) | 21.1 |
| Maximum Working Pressure (kg/cm²) | 21.1 |
| Maximum Working Pressure (kPa) | 2068 |
| Maximum Working Pressure (psi) | 300 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Regulated Pressure (bar) | 1.8 |
| Minimum Regulated Pressure (kg/cm²) | 1.8 |
| Minimum Regulated Pressure (kPa) | 172 |
| Minimum Regulated Pressure (psi) | 25 |
| Outlet Size (cm) | 3.8 |
| Outlet Size (in) | 1.5 |
| Outlet Size (mm) | 38 |
| Outlet Thread Type | Sanitary Flange |
| Wetted Material | Stainless Steel, Tungsten Carbide |
| Type | Back Pressure Regulator |
| Minimum Regulated Pressure (MPa) | 0.17 |
