Description

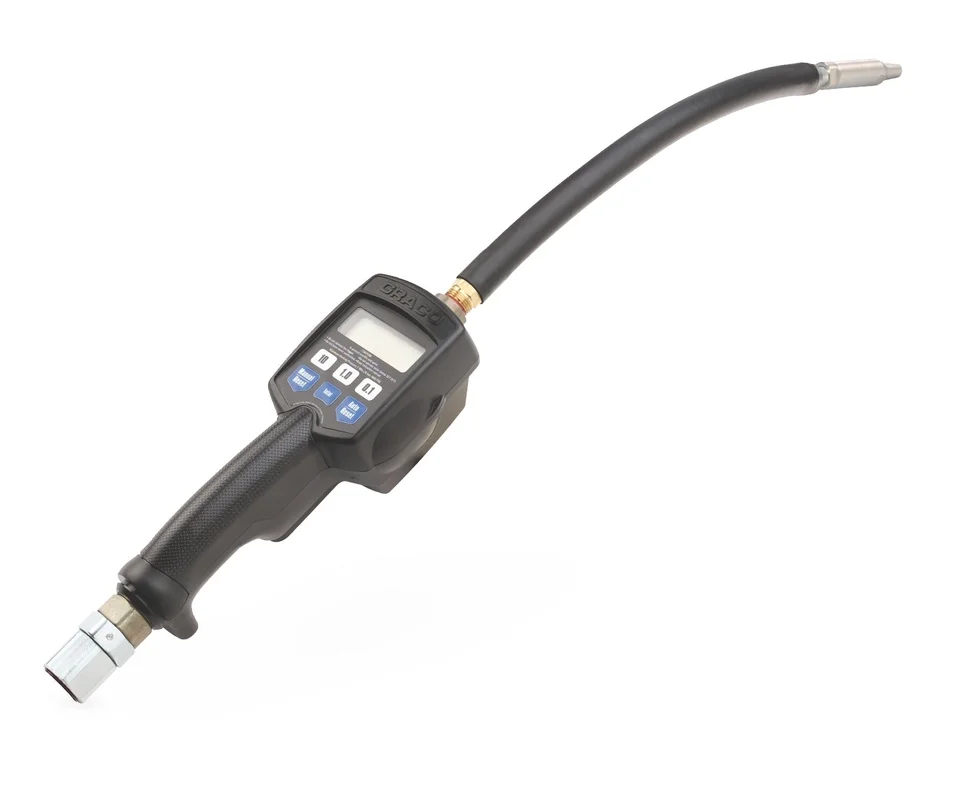

Graco’s LD series meters are perfect for lower-volume service application in small service shops, fast lube centers and automotive dealerships. These meters are capable of pumping petroleum, synthetic based oil and anti-freeze up to 5 gpm (19 lpm).
Indoor use for metered oil dispense in automotive dealerships, heavy-duty dealerships, fast lube centers, fleet service facilities, service shops, and in-plant.
- Easy to read LCD screen keeps dispenses precise
- Inlet 1/2 in. BSPT with swivel
- Rugged meter body is impact resistant for long life
- Ergonomically-design, comfortable handle with two-finger trigger.
- Preset meter automatically shuts-off flow when preset quantity has been dispensed
- 5 year warranty. See manufacturers website for details.
UPC Product: 00633955595606 Family Code: FAMMLD Unit of Measure: EA Height: 4.8 IN |12.192 CM Length: 4.8 IN |12.192 CM Width: 14.4 IN |36.576 CM Volume: .192 FT3 |.005 M3 Chargeable Weight: 3.5 LBS | 1.59 KG
Technical Specifications
| Approvals | CE |
|---|---|
| Compatible Material | Oil, Antifreeze |
| Dispense Type | Preset |
| Display Type | Electronic |
| Extension Type | Flexible |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| Includes | 喷嘴，延长件, Nozzle, Extension, Boquilla, extensión |
| Inlet Size (cm) | 1.27 |
| Inlet Size (in) | 1/2 |
| Inlet Size (mm) | 12.7 |
| Inlet Thread Type | BSPT |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Storage Temperature (°F) | 120 |
| Maximum Storage Temperature (°C) | 49 |
| Maximum Working Pressure (psi) | 1000 |
| Maximum Working Pressure (kPa) | 6900 |
| Maximum Working Pressure (bar) | 69 |
| Meter Accuracy (%) | ±0.5 |
| Overall Height (cm) | 8.3 |
| Overall Height (in) | 3.25 |
| Overall Height (mm) | 83 |
| Overall Length (cm) | 28 |
| Overall Length (in) | 11 |
| Overall Length (mm) | 280 |
| Overall Width (cm) | 8.3 |
| Overall Width (in) | 3.25 |
| Overall Width (mm) | 83 |
| Meter Technology | 椭圆齿轮, Oval Gear, Engranaje oval |
| Metering Gun Weight (lb) | 3 |
| Metering Gun Weight (kg) | 1.36 |
| Wetted Material | Stainless Steel, Nitrile Rubber, Zinc, CS, LCP |
| Warranty | 结构组件为 5 年；电子元件为 2 年；密封用的零配件为 1 年, 5 year Structural Components, Cinco años para componentes estructurales, 2 years Electronics, dos años para electrónica, 1 year Wear Parts, un año para piezas desgastadas |
| Unit of Measure | Quart, Pint, Gallon, Liter |
| Trigger Protection Type | Guard |
| Trigger Lock | Locking |
| Recommended Environment | Indoor |
| Outlet Thread Type | NPT |
| Outlet Size (cm) | 0.9525 |
| Outlet Size (mm) | 9.525 |
| Outlet Size (in) | 3/8 |
| Nozzle Type | Automatic |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Operating Temperature (°C) | 0 |
| Type | Electronic Metered Dispense Valve |
| Valve Type | Metered |
| Maximum Working Pressure (MPa) | 6.9 |
| Model | LDP5 |
