Description

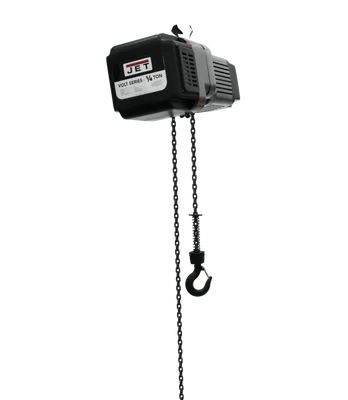

The Jet VOLT 1PH/3PH 230V 1/4T Electric Hoist w/ 20ft. Lift (182520) is a versatile lifting tool designed for industrial applications. Featuring full-range speed control, this hoist offers precise control over lifting and lowering speeds. Built with durability and safety in mind, it is equipped with overload and thermal overload protection, as well as a reliable electromagnetic brake.
KEY FEATURES AND BENEFITS:
- Full-Range Speed Control: Accurately adjust lifting and lowering speeds for various tasks.
- Precision Lifting: Gently lower loads with minimal speed for delicate operations.
- Safety Features: Overload and thermal overload protection, along with a sturdy electromagnetic brake.
- Durability: H4 duty rating for demanding industrial environments.
- Easy to Use: Simple controls for convenient operation.
SPECIFICATIONS:
- Load Capacity: 1/4 ton
- Lift Height: 20 feet
- Duty Cycle Rating: H4
- Duty Cycle: 50%
- Motor Phase: 1 or 3
- Lifting Speed: 0-55 FPM (Feet Per Minute)
- Headroom: 19-7/8 inches
- Motor Power: 1.5 HP
- Motor Voltage: 230V
- Load Chain Dimensions: 5 x 15 mm
- Number of Falls: 1
HOW TO USE:
- Inspect the hoist: Check for any damage or wear before use.
- Secure the load: Ensure the load is properly attached to the hook and balanced.
- Turn on the power: Connect the hoist to a power source.
- Operate the controls: Use the control pendant to lift or lower the load.
- Monitor the load: Continuously observe the load during the lifting process.
- Lower the load: Carefully lower the load to the desired position.
- Turn off the power: Disconnect the hoist from the power source after use.
BENEFITS OF USING Jet VOLT 1PH/3PH 230V 1/4T Electric Hoist w/ 20ft. Lift (182520):
- Increased efficiency: Precise speed control improves work productivity.
- Enhanced safety: Overload and thermal protection prevent accidents.
- Versatility: Suitable for various industrial applications.
- Durability: Built to withstand demanding work environments.
- Ease of use: Simple operation for efficient workflow.
FEATURES:
- Full-Range Speed Control
- Overload Protection
- Thermal Overload Protection
- Electromagnetic Brake
- H4 Duty Rating
- Grade 80 Load Chain
- Control Pendant
- Chain Bag
