Description

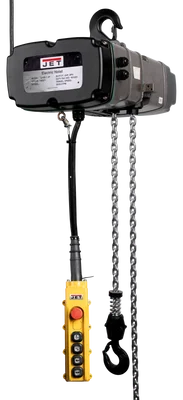

The Jet TS300-070 3PH 3-Ton Electric Hoist w/ 70′ Lift (140123) is a heavy-duty lifting equipment designed for industrial use. Built with safety, durability, and efficiency in mind, this hoist is ideal for various applications requiring precise and powerful lifting.
KEY FEATURES AND BENEFITS:
- Safety: Equipped with a 2-in-1 mechanical brake and overload protection, patented gear limit switch, and DC motor brake for added security.
- Efficiency: Two-speed motor for quick and controlled lifting, along with a 5-pocket chain sprocket for smooth operation.
- Durability: IP55 TEFC motor with Class F insulation for reliable performance in harsh environments.
- Convenience: IP65 rated pendant control for easy and safe operation.
SPECIFICATIONS:
- Capacity: 3 Tons (6600 lbs)
- Lift height: 70 feet
- Lifting speed: 21 and 5 feet per minute
- Motor: 5 HP, 230V, 3-phase
- Duty cycle: 40/20
- Weight: 565 lbs
- Dimensions: 37.008″ x 36.22″ x 23.622″
HOW TO USE:
- Inspect the Hoist: Check for any visible damage before use.
- Connect to Power Supply: Ensure proper connection to a 230V, 3-phase power source.
- Attach Load: Securely hook the load to the hoist’s lifting hook.
- Operate Pendant Control: Use the up and down buttons to lift or lower the load.
- Monitor Load: Continuously observe the load during lifting and lowering.
- Lower Load: Gradually lower the load to the desired position.
- Disconnect Power: Turn off the power supply after use.
BENEFITS OF USING Jet TS300-070 3PH 3-Ton Electric Hoist w/ 70′ Lift (140123):
- Increased productivity due to efficient lifting speeds.
- Improved safety with multiple safety features.
- Enhanced durability for long-lasting performance.
- Precise load handling with patented gear limit switch.
- Convenient operation with user-friendly pendant control.
FEATURES:
- Mechanical brake and overload protection
- Patented gear limit switch
- DC motor brake
- Two-speed motor
- IP55 TEFC motor with Class F insulation
- 5 pocket chain sprocket
- IP65 rated pendant control
- Built-in heat protection
