Description

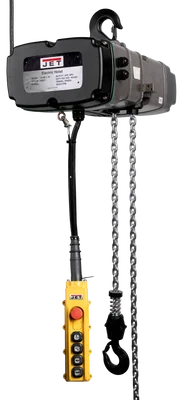

The Jet TS100-070 3PH 1-Ton Electric Hoist w/ 70′ Lift (140078) is a reliable and powerful lifting tool designed for heavy-duty industrial applications. Built with safety and efficiency in mind, this hoist offers a range of features to enhance your productivity.
KEY FEATURES AND BENEFITS:
- Safe Operation: Equipped with a two-in-one mechanical brake and overload protection, ensuring operator safety and preventing equipment damage.
- Precise Control: Patented gear limit switch for accurate lifting and lowering.
- Efficient Lifting: Two-speed motor for quick and controlled material handling.
- Durable Construction: IP55 TEFC motor with Class F insulation withstands harsh environments.
- Smooth Operation: 5 pocket chain sprocket reduces vibration and chain wear.
SPECIFICATIONS:
- Capacity: 1 Ton (2200 lbs)
- Lift Height: 70 ft
- Lifting Speed: 33/8 ft/min
- Motor: 1-1/2 HP, 230V, 3Ph
- Overload Protection: Yes
- Weight: 230 lbs
- Headroom: 19-7/10 in
- Overall Width: 15-1/6 in
- Motor Current: 4/6.9 amps
HOW TO USE:
- Inspect the Hoist: Check for any damage or wear before use.
- Secure the Load: Ensure the load is properly balanced and secured.
- Operate the Controls: Use the pendant control to lift or lower the load.
- Monitor the Load: Keep a close watch on the load during the lifting process.
- Lower the Load: Carefully lower the load to the desired location.
BENEFITS OF USING JET TS100-070 3PH 1-TON ELECTRIC HOIST W/ 70′ LIFT (140078):
- Increased Productivity: Efficient lifting enhances overall work efficiency.
- Enhanced Safety: Multiple safety features ensure operator protection.
- Improved Durability: Designed for long-lasting performance.
- Precise Load Placement: Two-speed operation allows for accurate load handling.
- Reduced Downtime: Reliable construction minimizes maintenance needs.
FEATURES:
- Two-speed motor for versatile lifting applications
- Mechanical brake and overload protection for safety
- Patented gear limit switch for precise control
- IP55 TEFC motor for durability in harsh environments
- 5 pocket chain sprocket for smooth operation
- Pendant control for convenient operation
- Built-in heat protection to prevent overheating
