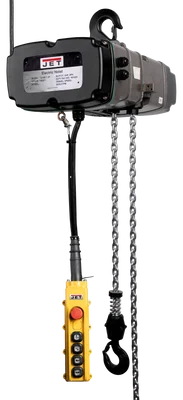

Jet TS050-010 3PH 1/2-Ton Electric Hoist w/ 10‘ Lift (140233)

Description

Jet TS050-010 3PH 1/2-Ton Electric Hoist w/ 10′ Lift (140233) is a reliable 1/2 ton electric hoist designed for efficient and safe lifting tasks. Built with durability and operator safety in mind, this hoist is perfect for industrial applications requiring precise load handling.

KEY FEATURES AND BENEFITS:

• Safety: Equipped with a mechanical brake, overload protection, DC motor brake, and patented gear limit switch for secure operation.
• Durability: Features an IP55 TEFC motor with Class F insulation, a 5-pocket chain sprocket for smooth operation, and built-in heat protection for extended lifespan.
• Efficiency: Two-speed motor allows for precise control and faster lifting, enhancing productivity.
• Convenience: IP65 rated waterproof pendant control for easy and safe operation.

SPECIFICATIONS:

• Capacity: 1/2 ton (1100 lbs)
• Lift: 10 feet
• Lifting Speed: 33/8 feet per minute
• Motor: 1-1/2 HP, 230V, 3 phase
• Duty Cycle: H4 (40/20%)
• Weight: 117 lbs
• Dimensions: 26.77″ L x 19.68″ W x 23.62″ H

HOW TO USE:

1. Inspect: Check the hoist for any visible damage before use. Ensure the area is clear of obstructions.
2. Power Supply: Connect the hoist to a reliable 230V, 3-phase power supply.
3. Attach Load: Securely attach the load to the hoist hook using appropriate lifting equipment.
4. Operate: Use the pendant control to lift or lower the load. Observe load limits and safety guidelines.
5. Lower and Disconnect: Gently lower the load and detach it from the hook. Turn off the power supply and disconnect the hoist.

BENEFITS OF USING JET TS050-010 3PH 1/2-TON ELECTRIC HOIST W/ 10′ LIFT (140233):

• Increased productivity: Due to efficient lifting speeds.
• Enhanced safety: With multiple safety features.
• Durable construction: For long-lasting performance.
• Precise load control: With two-speed motor.
• Easy-to-use pendant control: For convenient operation.

FEATURES:

• Mechanical brake
• Overload protection
• DC motor brake
• Patented gear limit switch
• IP55 TEFC motor with Class F insulation
• 5-pocket chain sprocket
• Built-in heat protection
• Two-speed motor
• IP65 rated pendant control
