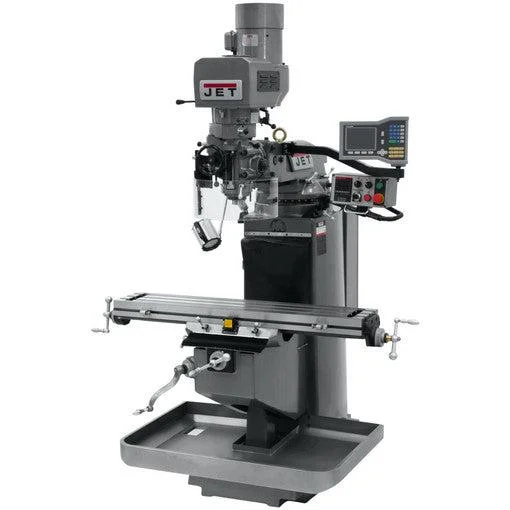

Jet 691500 Features
- New! JET designed Certified Meehanite® casting with enhanced ribbing ensures rigidity and tolerance retention
- Swing away control box houses an e-stop and puts all controls at the operators fingertips
- The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
- Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
- For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
- The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
- CSA/CUS Certified
- Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
- Spindle head is internally cooled extending bearing, belt and motor life
- Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
Jet 691500 Specifications
| Spindle Travel | 5″ |
| Table Cross Travel | 12-5/8″ |
| T-Slot Centers | 2-1/2″ |
| Min. Distance Spindle to Column | 4-3/4″ |
| Quill Down Feed Rates (IPR) | .0015 – .003 – .006 |
| Work Table Weight Capacity | 720 lbs |
| Quill Diameter | 3-3/8″ |
| Collet Capacity | 1/8 – 7/8 |
| Overall Dimensions (L x W x H) (In.) | 66 x 63 x 86 |
| Number of Spindle Speeds | Variable |
| Range of Spindle Speeds | 60 – 4,500 RPM |
| Head Movement | 90° R & L, 45° F & B |
| Motor | 3 HP, 230V, 3Ph |
| Style | EVS |
| Table Size (L x W) (In.) | 9 x 49 |
| Max. Distance Spindle to Column | 18-1/8″ |
| T-Slots Number and Size | 3 and 5/8″ |
| Travel of Knee | 15-3/4″ |
| Travel of Ram | 15-1/4″ |
| Max Distance Spindle to Table | 20-3/4″ |
| Table Longitudinal Travel | 36″ |
| Table Longitudinal Travel With Powerfeed | 30-3/4″ |
| Saddle Width | 11-1/2″ |
| Column Width | 18″ |
| Inverter Type | Delta, B |
| Spindle Taper (In. x TPI) | R-8 |
