Description

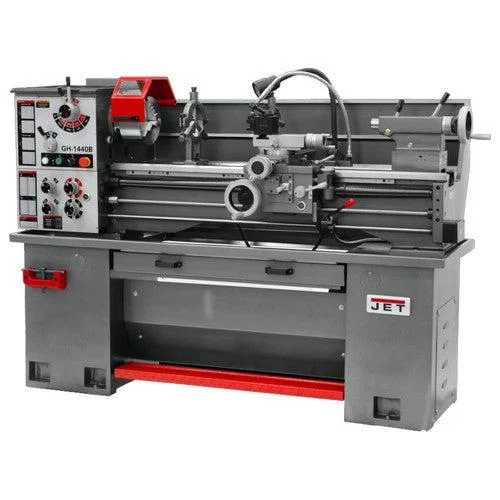

This new JET GH-1440B Geared Head Bench Lathe is engineered for smooth, quiet operation and user versatility. Positioned on a heavy-duty stand with a newly added built-in footbrake, the GH-1440B includes precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability. The GH1440B also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.
Features:
- Precision spindle roller bearings
- High quality steel hardened gears in headstock
- Lead screw cover
- Cast iron Stand
- Foot Brake comes standard
- Emergency Stop within easy reach of the Operator
- Chuck Guard
- Electronic Chuck Key Docking Station, provides Operator safety as the Lathe will not turn without the chuck key being docked
- Mounted on Cast Iron stand with foot pedal, coolant, chuck key docking station ready to use
- Enclosed gearbox design provides smooth, quiet operation
- Gap bed section provided for larger diameter work
- Adjustable gibs are incorporated in the carriage & slideways
- Gearbox gives wide range of inch & metric threading & feed capabilities with few gear changes
- Compound and cross slide have backlash adjustment
- Tailstock may be offset for turning tapers and include and inch/metric graduated quill
- Spindle Spider available for ease of turning Gun barrels
- STANDARD ACCESSORIES
- 8″ 3-Jaw Chuck
- 8″ 4-Jaw Chuck
- Steady Rest with Roller Bearings
- Follow Rest
- Quick Change Toolpost
- 5pc Set of Holders
- LED Work Lamp
- MT3 Live Center
- MT-5/3 Sleeve
Specifications:
| Item Number | 323440 |
| Model | GH-1440B |
| Digital Readout | ACU-RITE 203 |
| Swing Over Bed | 14″ |
| Swing Over Cross Slide | 8″ |
| Swing Through Gap | 20″ |
| Length of Gap | 8″ |
| Distance Between Centers | 36-7/8″ |
| Spindle Bore | 2″ |
| Spindle Mount | D1-5 |
| Number of Spindle Speeds | 8 |
| Range of Spindle Speeds (RPM) | 70 – 1900 |
| Spindle Taper with Sleeve | MT6 |
| Number of Longitudinal and Cross Feed Rates | 32/32 |
| Range of Longitudinal Feeds (IPR) | 0.002 – 0.0548 |
| Range of Cross Feeds (IPR) | 0.007 – 0.0187 |
| Number of Inch Threads | 34 |
| Range of Inch Threads (TPI) | 4-56 |
| Number of Metric Threads | 26 |
| Range of Metric Threads | 0.4 – 7 |
| Max Tool Size | 4/5″ x 4/5″ |
| Compound Slide Travel | 3-1/2″ |
| Cross Slide Travel | 7″ |
| Carriage Travel | 37-2/5″ |
| Tailstock Spindle Travel | 4″ |
| Taper in Tailstock Spindle | MT4 |
| Follow Rest Capacity | 0.31 – 2.16 |
| Steady Rest Capacity | 0.31 – 2.95 |
| Width of Bed | 7.32″ |
| Motor (HP) | 2 HP, 230V, Single Phase |
| Prewired (V.) | 230V |
| Overall Dimensions (L x W x H) | 76-13/32″ x 29-29/32″ x 59-13/16″ |
| Weight | 1753 lbs. |
