Description
DESCRIPTION

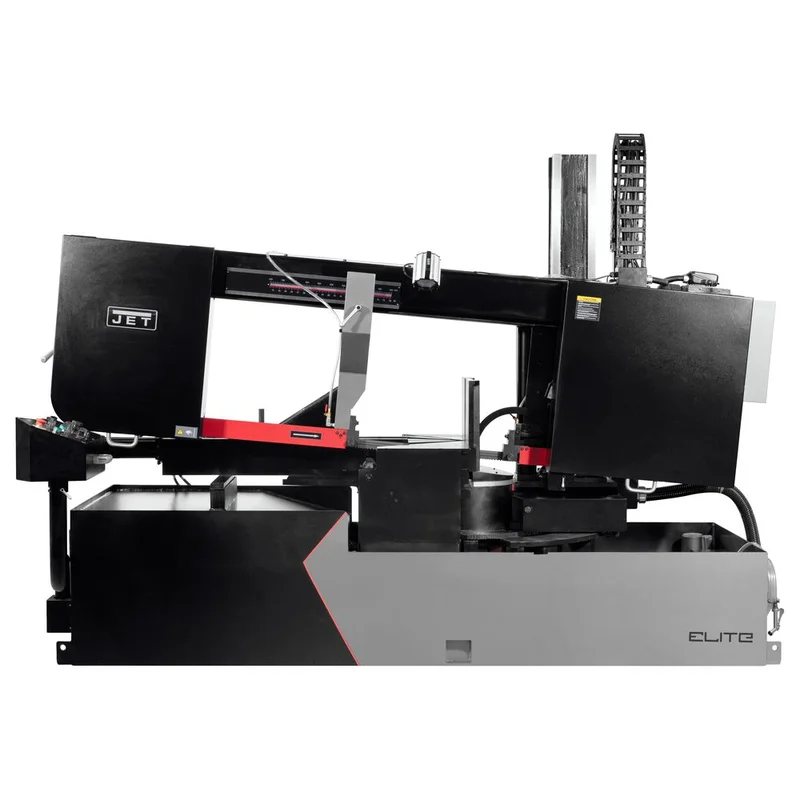

JET ELITE 18 x 33″ ECB-1833DMEVS-230 Semi-Automatic Dual Mitering EVS Bandsaw 230V, 3Ph JT9-891175
- With features unmatched, the JET Dual Mitering , Semi-Automatic, EVS Bandsaw is the perfect solution for cutting structural steel with ease.
- Auto table swivel
- Blade tension gauge helps to ensure the blade is in the correct cutting position
- Electronic Variable Speed from 50-297 SFPM
- Heavy duty construction reduces vibration and deflection
- Hydraulic assist descent control
- Semi-auto on saw bow lifting and hydraulic vise
- Swing away control box allows Operator to use in any position
ITEM: 18 x 33″ Semi-Automatic Dual Mitering EVS Bandsaw 460V, 3PhMANUFACTURER: JET ELITEMODEL: ECB-1833DMEVS-460PART# JT9-891175
| Rectangle at 90 Degrees (In.) | 18 x 31-1/2 |
| Square at 60 Degrees (In.) | 15 x 15 |
| Cutting Capacity (W x D) (In.) | 18 x 33 |
| Throat Depth (In.) | 18 |
| Blade Wheel Diameter (In.) | 22-53/64 |
| Bed Height (In.) | 33-15/32 |
| Square at 45 Degrees (In.) | 18 x 18 |
| Square at 90 Degrees (In.) | 18 x 18 |
| Coolant Pump Motor | 1/8HP, 460V, 3PH |
| Electrics | 7-1/2HP, 460V, 3Ph |
| Prewired Voltage (V.) | 460 |
| Overall Dimensions (L x W x H) (In.) | 110 x 75 x 83 |
| Net Weight (Lbs.) | 5,060 |
| Shipping Weight (Lbs) | 5,500 |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts & Labor
