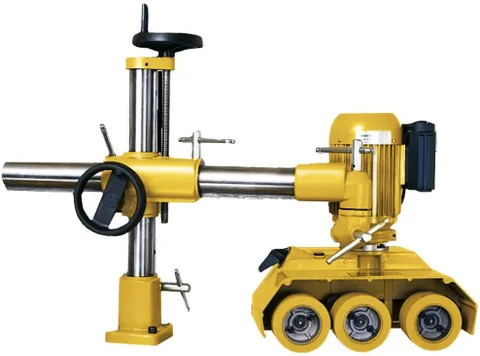

Jet PF-33 1HP 3PH 230V 4-Speed Power Feeder (1790800K)

Description

Jet PF-33 1HP 3PH 230V 4-Speed Power Feeder (1790800K) is a robust power feeder designed for reliable and efficient material handling. Built with durability in mind, this feeder features a solid cast iron construction and a powerful 1 HP motor to handle a variety of materials.

KEY FEATURES AND BENEFITS:

• Solid Construction: Cast iron body, base, and universal joints provide exceptional stability and reduce vibrations for precise feeding.
• Powerful Performance: The 1 HP continuous-duty motor ensures consistent power delivery for efficient material handling.
• Versatility: Fully adjustable support columns with moveable universal joints allow for flexible positioning in horizontal, vertical, or angled configurations.
• Easy Maintenance: The smart roller system enables quick and easy tire replacement without needing to replace the entire assembly.
• Precise Feeding: Roller chain and sprocket design provide superior positive feeding for various materials.

SPECIFICATIONS:

• Stock Number: JT-1790800K
• Model Number: PF-33
• Motor: 1 HP, 3 Phase, 230V
• Feed Rates: 13, 26, 33, 66 FPM
• Maximum Roller Height: 8-1/2 inches
• Dimensions: 43.23″ x 18.08″ x 29.5″
• Roller Size: 4-3/4″ x 2-1/4″
• Swing: 360 degrees
• Rotation: Forward/Reverse

HOW TO USE:

1. Safety First: Ensure the feeder is securely placed on a stable surface and unplugged before adjusting any settings.
2. Adjust Support Columns: Position the support columns to the desired feeding angle (horizontal, vertical, or angled) and tighten the locking mechanisms.
3. Select Feed Rate: Choose the appropriate feed rate based on the material and desired speed.
4. Load Material: Place the material onto the feed rollers, ensuring it is properly aligned.
5. Start Feeder: Turn on the power and engage the motor. The feeder will start moving the material at the selected speed.
6. Monitor Feeding: Observe the material as it is fed through the machine. Make adjustments to the feed rate or support column position as needed.
7. Stop Feeder: Turn off the power and allow the feeder to come to a complete stop before unloading the material.

BENEFITS OF USING Jet PF-33 1HP 3PH 230V 4-Speed Power Feeder (1790800K):

• Increased Productivity: Efficiently handles various materials, improving workflow and output.
• Improved Accuracy: Consistent and precise material feeding for enhanced product quality.
• Reduced Labor: Automated feeding reduces manual effort and operator fatigue.
• Durability and Reliability: Built with heavy-duty materials for long-lasting performance.
• Versatility: Can be used in various applications and industries.

FEATURES:

• Cast iron construction
• Continuous duty motor
• Adjustable support columns
• Roller chain and sprocket design
• Smart roller system
• Forward/reverse rotation
• 360-degree swing
