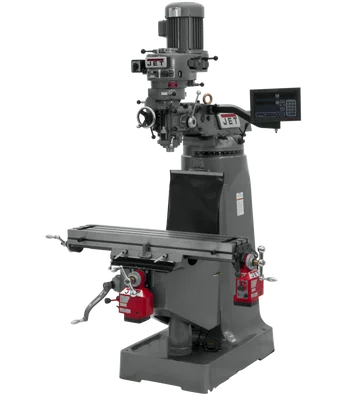

Jet Mill With 3-Axis Newall DP700 DRO (Quill) XY-Axis Pwrfds (691192)

Description

The Jet Mill With 3-Axis Newall DP700 DRO (Quill) XY-Axis Pwrfds (691192) is a powerful and versatile milling machine engineered for precision and productivity in your workshop. With its integrated 3-axis Newall DP700 DRO and X/Y power feeds, it offers accurate control and efficient machining for a wide range of applications.

KEY FEATURES AND BENEFITS:

• Precision Machining: Meehanite casting, precision-ground components, and high-quality spindle bearings ensure accuracy and stability for superior results.
• Enhanced Control: The Newall DP700 DRO provides precise measurements on all three axes, simplifying setups and improving repeatability.
• Efficient Operation: X and Y-axis power feeds automate table movement, reducing operator fatigue and increasing productivity.
• Versatile Performance: The tilting head and variable spindle speeds allow for a broad range of machining operations.
• Built-in Coolant System: The integrated coolant tank with a pump (not included) helps to maintain tool life and improve surface finishes.

SPECIFICATIONS:

• Motor: 2 HP, 230V, 3 Phase
• Spindle Speeds: 16
• Spindle Taper: R-8
• Quill Diameter: 3-3/8 inches
• Table Size: 9 x 42 inches
• Table Travel:
  • Longitudinal: 23-7/8 inches (20-2/7 with power feed)
  • Cross: 12-1/2 inches
• Knee Travel: 14-1/2 inches
• Ram Travel: 13-3/8 inches
• Weight: 2200 lbs.

HOW TO USE:

1. Preparation: Ensure the machine is properly leveled and lubricated according to the manufacturer’s instructions.
2. Workpiece Setup: Securely mount your workpiece on the table using appropriate clamps or fixtures.
3. Tool Selection: Choose the correct cutting tool for your desired operation and install it in the spindle.
4. DRO Setup: Zero the DRO axes and input your desired dimensions.
5. Machining Operation: Initiate the spindle and carefully feed the tool into the workpiece, using the DRO for precise positioning.
6. Coolant (Optional): If desired, activate the coolant system to lubricate and cool the cutting tool and workpiece.
7. Completion: After completing the machining operation, carefully remove the workpiece and inspect it for accuracy.

BENEFITS OF USING THE Jet Mill With 3-Axis Newall DP700 DRO (Quill) XY-Axis Pwrfds (691192):

• Improved Accuracy: The DRO system and power feeds ensure precise results with minimal operator intervention.
• Increased Productivity: Automated table movement and efficient operation save time and reduce labor costs.
• Enhanced Versatility: Wide range of machining operations possible with adjustable head and spindle speeds.
• Extended Tool Life: Built-in coolant system helps to preserve cutting tools and improve surface finishes.
• Durability and Reliability: Robust construction and high-quality components ensure long-lasting performance.

FEATURES:

• Meehanite casting for stability
• Precision-ground components for accuracy
• Class 7 spindle bearings for smooth operation
• One-shot lubrication system for easy maintenance
• Way covers for protection
