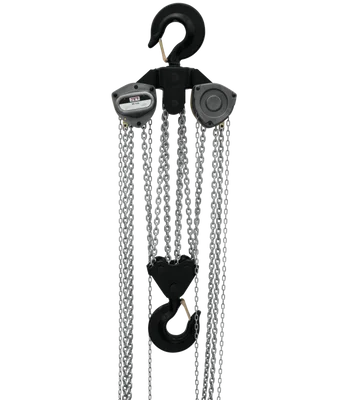

Jet L100-1500WO-10 15T Hoist 10″ Lift w/ Overload Protection (109110)

Description

The Jet L100-1500WO-10 15T Hoist 10″ Lift w/ Overload Protection (109110) is a heavy-duty manual chain hoist designed for lifting and lowering loads up to 15 tons (33,000 lbs) with a 10-foot lifting height. Built for industrial applications, it features a robust all-steel construction with heat-treated components for extended durability.

KEY FEATURES AND BENEFITS:

• Overload Protection: Ensures safe operation with a slip-clutch mechanism and slowly stretching hooks that indicate overload situations.
• Strong and Durable: Grade 100 load chain offers 20% more strength than standard Grade 80 chains. Sealed ball bearings ensure smooth operation with minimal effort.
• Enhanced Safety: Cast steel safety latches with secure fasteners exceed industry standards. Zinc-coated internal parts and heat-treated load plates provide superior corrosion resistance for use in harsh environments.
• Low Maintenance: The patented fused brake design minimizes maintenance requirements.
• Factory Tested and Certified: Each hoist undergoes rigorous testing and certification to meet ANSI / ASME B30.16 and HST-2 safety standards for user confidence.

SPECIFICATIONS:

• Capacity: 15 tons (33,000 lbs)
• Lift Height: 10 ft
• Chain: Grade 100, corrosive resistant plated, 9 x 27 mm
• Construction: All steel
• Headroom: 34-1/3 in.
• Hand Chain Pull Force (LBF) to Move Load: 80 x 2
• Load Chain Dimensions (Mm.): 9 x 27
• Number of Falls: 6
• Weight: 292 lbs.

HOW TO USE:

1. Secure the hoist to a suitable overhead support structure with a rated capacity exceeding the intended load. Ensure proper attachment points and follow the manufacturer’s instructions for safe installation.
2. Inspect the hoist for any damage or wear before use. Check the chain for cracks, twists, or excessive wear. Verify that the safety latches are properly engaged.
3. Position the load hook directly below the object to be lifted. Ensure the load is centered and balanced.
4. Begin pulling the hand chain steadily to raise the load. The hoist should operate smoothly with minimal effort.
5. To lower the load, slowly release the hand chain while maintaining control. Do not allow the chain to freefall.
6. Once the lift is complete, secure the load at its final destination and disengage the hoist from the support structure.

BENEFITS OF USING JET L100-1500WO-10 15T HOIST 10″ LIFT W/ OVERLOAD PROTECTION (109110):

• Safely lifts and maneuvers heavy objects in industrial settings.
• Durable construction withstands demanding applications.
• Overload protection features prevent damage from exceeding the hoist’s capacity.
• Grade 100 chain provides superior strength and reliability.
• Smooth operation minimizes operator fatigue.
• Corrosion-resistant materials ensure long-lasting performance.
• Low maintenance design reduces downtime and operating costs.
• Factory-tested and certified for user confidence and compliance with safety standards.

FEATURES:

• All steel construction
• Double sealed ball bearings for smooth operation
• Grade 100, corrosive resistant plated load chain
• Heat-treated load plates
• Industrial rated alloy steel hooks rotate 360 degrees
• Weston style double ratchet pawl brake design
• Cast steel safety latches with Allen screws and lock nuts
