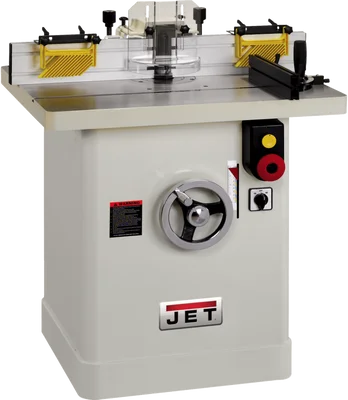

Jet JWS-35X5-1 230V 5HP 1PH Industrial Shaper (708326)

Description

The Jet JWS-35X5-1 230V 5HP 1PH Industrial Shaper (708326) is a heavy-duty woodworking tool designed for professional woodworkers and demanding shops. With its robust construction, powerful motor options, and versatile features, it excels at a wide range of shaping tasks. Whether you’re crafting intricate moldings, shaping table legs, or producing custom woodwork, this shaper delivers the precision and performance you need.

KEY FEATURES AND BENEFITS:

• Powerful Motor Options: Choose between 3HP, 5HP single-phase, or 5HP three-phase motors to match your power requirements and electrical setup.
• Four Speeds: Select from 4000, 6000, 8000, or 10000 RPM to optimize cutting speed and torque for different cutter sizes and materials.
• Reversible Spindle: Easily change the direction of spindle rotation for added flexibility in your shaping operations.
• Precision Control: Independently adjustable fences with micro-adjust controls ensure accurate positioning for clean, consistent cuts.
• Large Work Surface: The spacious 26-3/4″ x 32-1/4″ cast iron table provides ample support for your workpieces.
• Enhanced Safety: Features include a spindle lock for secure cutter changes and starting pins for controlled shaping of irregular workpieces.
• Dust Collection: The integrated 4″ dust port helps maintain a cleaner workspace and improves visibility.

SPECIFICATIONS:

• Model Number: JWS-35X5-1
• Stock Number: JT9-708326
• Motor Options: 3HP 1Ph, 5HP 1Ph, 5HP 3Ph
• Voltage: 230V
• Spindle Speeds: 4000, 6000, 8000, 10000 RPM
• Table Size: 26-3/4″ x 32-1/4″
• Dust Port Diameter: 4 inches
• Dimensions: 41″H x 30″L x 40″W
• Weight: 473 lbs (net), 550 lbs (shipping)

HOW TO USE:

1. Preparation: Ensure the shaper is properly installed and securely mounted. Select and install the appropriate cutter for your shaping task.
2. Safety First: Always wear safety glasses and hearing protection when operating the shaper. Use push sticks or featherboards to keep your hands away from the cutter.
3. Adjust Fences: Position the left and right fences to guide your workpiece and achieve the desired cut width. Use the micro-adjust controls for precise positioning.
4. Set Speed: Choose the appropriate spindle speed based on the cutter diameter and the material being shaped.
5. Start Shaping: Feed the workpiece slowly and steadily into the cutter, following the fence guides. Avoid excessive force or sudden movements.
6. Complete the Cut: Continue feeding the workpiece until the cut is complete. Turn off the shaper and allow it to come to a complete stop before removing the workpiece.

BENEFITS OF USING THE Jet JWS-35X5-1 230V 5HP 1PH Industrial Shaper (708326):

• Professional Results: Achieve precise and consistent shaping results for high-quality woodwork.
• Versatility: Handle a wide range of shaping operations with different cutters and spindle speeds.
• Efficiency: The powerful motor and stable design enable efficient material removal and smooth operation.
• Durability: Built with heavy-duty components for long-lasting performance in demanding environments.

FEATURES:

• Extra-large chrome handwheel: Provides easy and accurate spindle height adjustments.
• Poly-V-belt drive: Ensures smooth power transmission and maximum efficiency.
• Starting pins: Assist in shaping irregular workpieces.
• Spindle lock: Allows for safe and convenient cutter changes.
• Spindle height scale: Provides a visual reference for precise spindle adjustments.
• T-slotted fence: Accepts featherboards and other accessories for enhanced workholding and safety.
