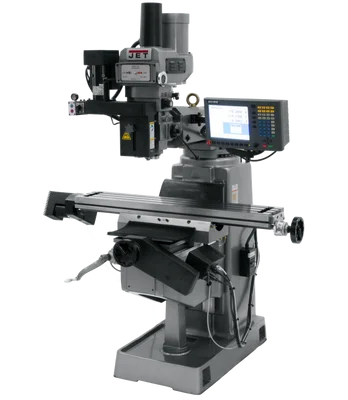

Jet JTM-949EVS/230 Mill w/2-Axis ACU-RITE G-2 MILLPWR CNC (690575)

Description

Jet JTM-949EVS/230 Mill w/2-Axis ACU-RITE G-2 MILLPWR CNC (690575) offers the combined benefits of computer-controlled automation and manual operation. The Meehanite® cast iron base minimizes vibration and ensures machine stability during heavy-duty cutting. The ACU-RITE G-2 MILLPWR® CNC system allows you to program complex machining processes for consistent, repeatable results.

KEY FEATURES AND BENEFITS:

• 2-axis CNC control system (ACU-RITE G-2 MILLPWR®) for programmed automation
• Meehanite® cast iron base for vibration dampening and stability
• Precision-bored and honed milling head for cutting accuracy
• Internal spindle cooling extends bearing and motor life
• 3HP motor with variable speed range (60-4500 RPM) for diverse materials
• R8 spindle taper for compatibility with various tooling
• Automatic lubrication system reduces maintenance
• Swing-away spindle guard, LED work lamp, and emergency stop for safety

SPECIFICATIONS:

• Capacity: 9″ x 49″ work table
• Motor: 3HP
• Spindle Speed: 60-4500 RPM (variable)
• Spindle Taper: R8

HOW TO USE:

Follow these steps for effective use of the Jet JTM-949EVS/230 Mill:

1. Ensure the machine is securely leveled using JET’s exclusive new casting.
2. Power on the machine and adjust the variable speed range (60-4500 RPM) as per material requirements.
3. Program machining processes using the ACU-RITE G-2 MILLPWR® CNC system for precise automation.
4. Utilize the swing-away spindle guard, LED work lamp, and emergency stop for operator safety.

BENEFITS OF USING Jet JTM-949EVS/230 Mill w/2-Axis ACU-RITE G-2 MILLPWR CNC (690575):

• Enhanced metalworking capabilities for workshops and machine shops.
• Precise operation and cutting accuracy due to precision-bored and honed milling head.
• Reduced maintenance and extended machine uptime with internal spindle cooling and automatic lubrication system.

FEATURES:

• Computer-controlled automation with ACU-RITE G-2 MILLPWR® CNC system
• Vibration dampening and stability from Meehanite® cast iron base
• Exceptional cutting accuracy with precision-bored and honed milling head
• Extended bearing and motor life with internal spindle cooling
• Precise depth control with three-stage power downfeed and automatic stop
• Quick stopping power with heavy-duty spindle brake
• Operator safety features including swing-away spindle guard, LED work lamp, and emergency stop
• Convenient machine maintenance with automatic lubrication system (every 30 minutes)
• Easy access controls with inverter drive system and emergency stop on swing-away control arm
