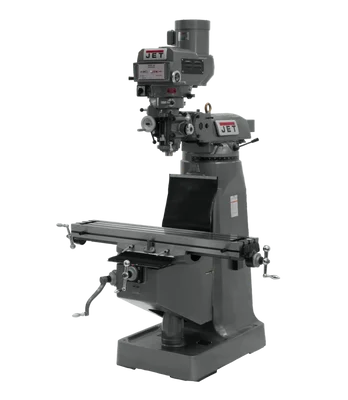

Jet JTM-4VS Mill With 3-Axis ACU-RITE 203 DRO (Quill) (690184)

Description

Jet JTM-4VS Mill With 3-Axis ACU-RITE 203 DRO (Quill) (690184) is a professional-grade vertical milling machine designed to deliver precision and reliability for a wide range of machining tasks. Its robust construction, advanced features, and user-friendly design make it an ideal choice for both experienced machinists and those new to milling.

KEY FEATURES AND BENEFITS:

• Meehanite Cast Iron Construction: The machine’s body is made of Meehanite cast iron, ensuring stability and vibration dampening for smoother cuts and longer tool life.
• Precision Milling Head: The precision-bored and honed milling head guarantees accurate and consistent results with every cut.
• Variable Speed Spindle: The variable speed spindle (60-42,000 RPM) allows you to adjust the cutting speed to match the material and tooling, optimizing performance and results.
• 3-Axis ACU-RITE 200S DRO: The integrated digital readout system provides precise measurements for the X, Y, and Quill axes, enhancing accuracy and efficiency in your work.
• Large Chromed Quill: The large-diameter quill is chromed for durability and smooth operation, ensuring accurate drilling and boring.
• Power Downfeed with Automatic Stop: The three-stage power downfeed with an automatic stop simplifies operation and provides controlled and safe milling.
• Internal Coolant Tank: The built-in coolant tank allows for efficient cooling during operation, extending tool life and improving surface finish.

SPECIFICATIONS:

• Motor: 3 HP, 230/460V, 2Ph (prewired 230V)
• Spindle Taper: R-8
• Quill Diameter: 3-3/8 inches
• Quill Travel: 5 inches
• Table Size: 9 x 49 inches
• Table Travel (Longitudinal/Cross): 34 inches / 12 inches
• Knee Travel: 16 inches
• Ram Travel: 14-1/2 inches
• Overall Dimensions (H x W x L): 85 x 65.5 x 63 inches
• Weight: 2420 lbs

HOW TO USE:

1. Setup: Properly position and secure the workpiece on the table.
2. Tooling: Select and install the appropriate cutting tool for the desired operation.
3. Speed and Feed: Set the spindle speed and feed rate according to the material and tool recommendations.
4. DRO: Utilize the digital readout system to accurately position the workpiece and control cutting depth.
5. Coolant: If necessary, activate the coolant system for improved cutting performance.
6. Operation: Begin the milling operation, monitoring progress and adjusting parameters as needed.

BENEFITS OF USING Jet JTM-4VS Mill With 3-Axis ACU-RITE 203 DRO (Quill) (690184):

• Enhanced Precision: The DRO system and precision components ensure accurate and repeatable results.
• Versatility: The variable speed spindle and wide range of features accommodate various machining tasks.
• Durability: The Meehanite cast iron construction and quality components provide long-lasting performance.
• User-Friendly: The intuitive controls and ergonomic design make it easy to operate, even for beginners.

FEATURES:

• Precision ground table and ways
• Adjustable gibs for precise movement control
• One-shot lubrication system for easy maintenance
• Included accessories: way covers, draw bar, and toolbox with tools
