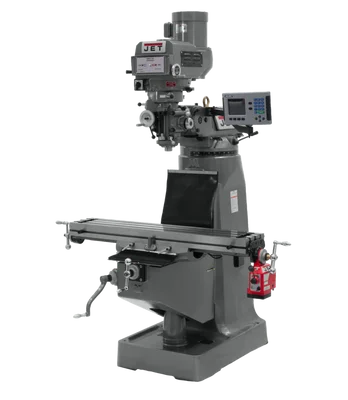

Jet JTM-4VS Mill 3-Axis ACU-RITE 203 DRO (Knee) X Powerfeed (690408)

Description

Jet JTM-4VS Mill 3-Axis ACU-RITE 203 DRO (Knee) X Powerfeed (690408) is a professional-grade vertical milling machine engineered for precision and productivity. Its robust construction, advanced features, and user-friendly design make it an excellent choice for a variety of machining tasks, from small workshops to industrial settings.

KEY FEATURES AND BENEFITS:

• Meehanite Casting: Ensures stability, dampens vibrations, and promotes smooth operation for superior surface finishes.
• Precision Milling Head: Bored and honed to exacting standards, guaranteeing accurate cuts and consistent results.
• 3-Axis DRO: The Anilam 411 digital readout system simplifies precise positioning and eliminates manual measurement errors, boosting efficiency and accuracy.
• X-Axis Power Feed: Automates table movement along the X-axis, reducing operator fatigue and ensuring consistent feed rates for optimal material removal and tool life.
• Variable Speed: The 3 HP motor and variable speed range (60-42,000 RPM) provide versatility for machining a wide range of materials, from soft metals to hardened steel.
• Internal Coolant Tank: Integrated into the base, the coolant tank simplifies setup and use of a coolant system (coolant pump sold separately) to extend tool life and improve surface finish.

SPECIFICATIONS:

• Motor: 3 HP, 230/460V, 3-Phase (prewired 230V)
• Spindle Speeds: Variable, 60-42,000 RPM
• Spindle Taper: R-8
• Quill Diameter: 3-3/8 inches
• Table Size: 9 x 49 inches
• Table Travel (Longitudinal/Cross/Vertical): 34 / 12 / 16 inches
• Overall Dimensions (H x W x L): 85 x 65.5 x 63 inches

HOW TO USE:

1. Setup: Securely mount the workpiece on the table using appropriate clamps or fixtures.
2. Tooling: Select and install the appropriate cutting tool for the desired operation.
3. DRO: Zero the DRO axes for accurate measurements.
4. Speed and Feed: Set the spindle speed and feed rate based on the material and tool being used.
5. Operation: Engage the X-axis power feed (if desired) and initiate the cutting process.
6. Coolant: If using, activate the coolant system (requires a separate pump) to cool and lubricate the cutting zone.

BENEFITS OF USING Jet JTM-4VS Mill 3-Axis ACU-RITE 203 DRO (Knee) X Powerfeed (690408):

• Precision: Achieve tight tolerances and superior surface finishes.
• Efficiency: Automate tasks, reduce manual labor, and increase throughput.
• Versatility: Handle a wide range of materials and machining operations.
• Durability: Built to withstand demanding applications and provide years of reliable service.

FEATURES:

• Precision ground table and ways
• Adjustable gibs for backlash control
• Heavy-duty spindle brake
• One-shot lubrication system
• Way covers for protection
