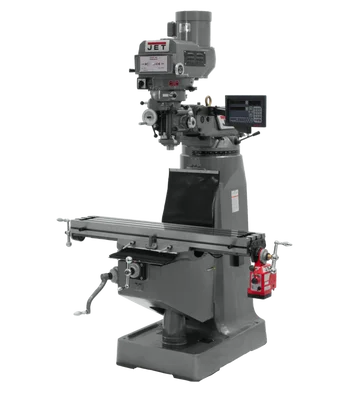

Jet JTM-4VS-1 Mill Newall DP700 DRO with X-Axis Powerfeed (691087)

Description

Jet JTM-4VS-1 Mill Newall DP700 DRO with X-Axis Powerfeed (691087) is a professional-grade milling machine designed for versatility and precision in metalworking applications. Built with the Meehanite® casting process, this mill offers exceptional stability and vibration dampening for accurate machining results.

KEY FEATURES AND BENEFITS:

• Meehanite Castings: Ensure consistent and reliable operation by minimizing vibration and improving overall stability.
• Precision Milling Head: Precision bored and honed for smooth, accurate cuts and extended tool life.
• Newall DP700 DRO: Digital Readout provides precise measurements for accurate positioning and repeatability.
• X-Axis Powerfeed: Automates feeding along the X-axis, reducing operator fatigue and increasing productivity.
• Variable Spindle Speeds (60-4200 RPM): Allows for optimal cutting speeds for a wide variety of materials and tools.
• 3-Stage Power Downfeed: Enables controlled and accurate depth adjustments for various machining operations.

SPECIFICATIONS:

• Table Size: 9″ x 49″
• Quill Travel: 5″
• Head Tilt: 90° Right & Left, 45° Front & Back
• Motor: 2 HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H): 66 x 63 x 85 inches
• Weight: 2,420 lbs

HOW TO USE:

1. Setup: Securely mount your workpiece on the mill table using clamps or vises.
2. Tool Selection: Choose the appropriate cutting tool for your material and desired operation.
3. Speed and Feed: Set the spindle speed and feed rate based on the material and tool specifications.
4. DRO Calibration: Calibrate the Newall DP700 DRO for accurate positioning.
5. X-Axis Powerfeed (Optional): Engage the X-axis powerfeed for automated feeding along the X-axis.
6. Milling Operation: Perform your desired milling operation (facing, slotting, drilling, etc.) while monitoring the DRO for precise positioning.
7. Coolant (Optional): Use the internal coolant system for improved tool life and surface finish.

BENEFITS OF USING THE Jet JTM-4VS-1 Mill Newall DP700 DRO with X-Axis Powerfeed (691087):

• Increased Productivity: X-axis powerfeed and DRO enhance efficiency.
• Improved Accuracy: Precise positioning and repeatability.
• Versatility: Variable speeds and power downfeed for a wide range of operations.
• Durability: Meehanite casting and heavy-duty construction ensure long-lasting performance.

FEATURES:

• Chrome-plated Quill and Motor Shaft: Enhanced durability and corrosion resistance.
• High-Precision Spindle Bearings: Smooth operation and reduced vibration.
• One-Shot Lubrication System: Simplifies maintenance and ensures proper lubrication of critical components.
