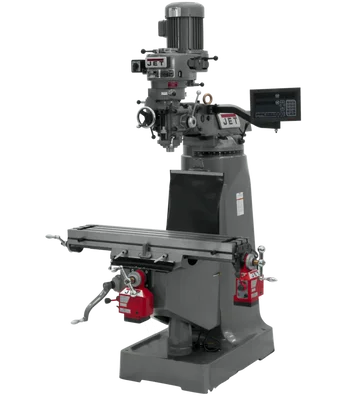

Jet JTM-2 Mill 3-Axis Newall DP700 DRO X & Y-Axis Powerfeeds (691199)

Description

The Jet JTM-2 Mill 3-Axis Newall DP700 DRO X & Y-Axis Powerfeeds (691199) is a versatile milling machine designed for precision and productivity in both professional and personal workshops. Its robust construction and advanced features make it a valuable addition to any machining setup.

KEY FEATURES AND BENEFITS:

• NEWALL C-80 3-Axis DRO: Enables precise positioning on all three axes (X, Y, and Quill), streamlining operations and minimizing errors.
• X and Y Power Feed: Allows for smooth and controlled movement of the table and saddle, improving efficiency and reducing operator fatigue.
• Meehanite Castings: Ensures exceptional stability and dampening, minimizing vibrations for smoother operation and enhanced accuracy.
• Precision Bored and Honed Milling Head: Guarantees precise milling operations for consistent and reliable results.
• Large Diameter Chromed Quill: Provides smooth and accurate quill movement for precise depth control.
• Internal Coolant System: Enables efficient cooling and lubrication during operation, extending tool life and improving surface finish.

SPECIFICATIONS:

• Motor: 2 HP, 115/230V, 1 Phase, Prewired 230V
• Spindle Speeds: 8
• Spindle Taper: R-8
• Quill Diameter: 3-3/8 inches
• Head Movement: 90° Right & Left, 45° Front & Back
• Maximum Spindle-to-Table Distance: 17-1/2 inches
• Table Longitudinal Travel: 23-7/8 inches
• Table Cross Travel: 12-1/2 inches
• Overall Dimensions: 57 x 64 x 82 inches (W x L x H)
• Weight: 2200 lbs

See full specifications above for additional details.

HOW TO USE:

1. Preparation: Secure your workpiece firmly to the table using appropriate clamps or fixtures.
2. Tooling: Select the correct milling cutter for your desired operation and securely mount it in the spindle.
3. DRO Setup: Zero the DRO axes for accurate positioning.
4. Speed and Feed Selection: Choose appropriate spindle speed and feed rates based on the material and cutter type.
5. Operation: Engage the power feed (if using) and carefully guide the cutter through the workpiece.
6. Monitoring: Regularly check the DRO readings to ensure accurate cuts and adjust as needed.
7. Safety: Always wear appropriate safety gear, including eye and ear protection.

BENEFITS OF USING THE Jet JTM-2 Mill 3-Axis Newall DP700 DRO X & Y-Axis Powerfeeds (691199):

• Precision: Achieve tight tolerances and accurate cuts thanks to the rigid construction and advanced DRO system.
• Productivity: Complete milling operations faster and more efficiently with power feed and streamlined controls.
• Versatility: Handle a wide range of milling tasks, from simple cuts to complex profiles.
• Durability: Built to last with Meehanite castings and hardened ways for long-term performance.

FEATURES:

• One-shot lubrication system
• Hardened and ground ways
• Way covers
• Includes a drawbar and toolbox with tools
