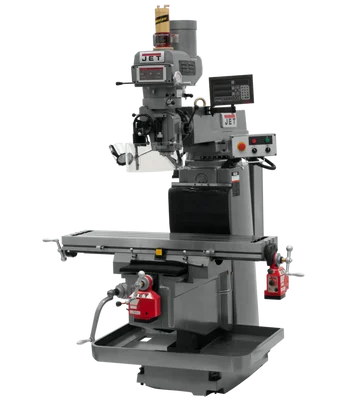

Jet JTM-1254VS Vertical Mill w/DP700 3X-Q X/Y PFD, APDB (698081)

Description

The Jet JTM-1254VS Vertical Mill w/DP700 3X-Q X/Y PFD, APDB (698081) is built for demanding applications, delivering precision performance and heavy-duty construction. This machine features a spacious 12″ x 54″ table for accommodating larger workpieces. The variable speed motor allows for tailored cutting speeds for various materials. The NT40 spindle taper offers compatibility with a wide range of tooling.

KEY FEATURES AND BENEFITS:

• Rigid Construction: Certified Meehanite® castings ensure vibration-free operation and machining accuracy.
• High-Precision Components: Precision-bored and honed milling head, Class 7 spindle bearings, and hardened and ground ways and table for exceptional machining precision.
• Digital Readout (DRO): Newall DP700 DRO system enables precise positioning on X, Y, and quill axes for efficient and accurate machining.
• Enhanced Productivity:
  • Powerfeeds on X and Y Axes automate movements for increased productivity and operator convenience.
  • Air Power Drawbar allows for effortless tool changes, minimizing downtime.
  • Automatic Lubrication system reduces maintenance requirements and extends machine life.
• Easy Leveling System: JET-exclusive casting design simplifies machine leveling, eliminating the need to raise the mill off the floor.
• Durability and Convenience: Features include a heavy-duty spindle brake, adjustable gibs throughout, and a built-in chip pan for enhanced durability and user experience.

SPECIFICATIONS:

• Table Size: 12″ x 54″
• Spindle Taper: NT40
• Motor Power: Variable speed
• Digital Readout: Newall DP700 3X-Q
• Powerfeeds: X and Y axes
• Power Drawbar: Air-powered
• Automatic Lubrication: Yes

HOW TO USE:

Follow these steps for efficient operation of the Jet JTM-1254VS Vertical Mill w/DP700 3X-Q X/Y PFD, APDB:

1. Ensure the machine is properly leveled using the JET-exclusive casting design.
2. Set the spindle speed according to the material being machined for optimal cutting performance.
3. Use the Newall DP700 DRO system to precisely position the cutting tool on X, Y, and quill axes.
4. Activate the powerfeeds on the X and Y axes to automate movement during milling operations.
5. Maintain the automatic lubrication system to ensure smooth operation and extend machine life.
6. Utilize the air-powered drawbar for quick and efficient tool changes.

BENEFITS OF USING Jet JTM-1254VS Vertical Mill w/DP700 3X-Q X/Y PFD, APDB (698081):

• Provides exceptional stability and vibration dampening with Meehanite® castings.
• Delivers precise machining with high-precision components and digital readout.
• Enhances productivity with automated features like powerfeeds and air power drawbar.
• Simplifies operation and maintenance with automatic lubrication and easy leveling system.

FEATURES:

• Rigid Construction with Meehanite® Castings
• High-Precision Components
• Digital Readout (Newall DP700 3X-Q)
• Powerfeeds on X and Y Axes
• Air Power Drawbar
• Automatic Lubrication System
• JET-Exclusive Casting Design for Easy Leveling
