Description

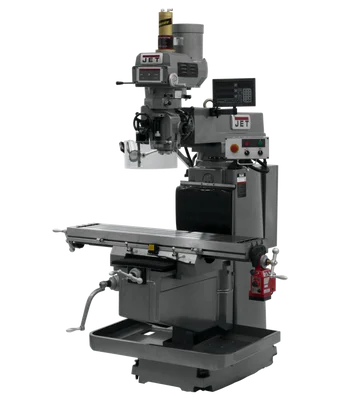

Jet JTM-1254VS Mill w/ NEWALL DP700 3X (K) DRO X Pwrfd & APD (698073) is a robust and precise tool designed for efficient metalworking. This variable speed vertical milling machine features a 12″ x 54″ table, NEWALL DP700 DRO, X power feed, and an air power drawbar for enhanced productivity. Built with certified Meehanite castings, it ensures durability and stability.
KEY FEATURES AND BENEFITS
- Precision Machining: High-precision spindle bearings and hardened ground ways deliver accurate cuts.
- Efficient Operation: X-axis power feed, quick spindle feed nut, and automatic lubrication enhance productivity.
- Versatile Performance: Variable speed control and adjustable spindle travel accommodate various machining tasks.
- Durable Construction: Certified Meehanite castings and heavy-duty components ensure long-lasting use.
- User-Friendly Design: Easy-to-use controls and clear digital readouts simplify operation.
SPECIFICATIONS
- Table Size: 12″ x 54″
- Spindle Taper: NST #40
- Spindle Speed Range: 80-3800 RPM
- Motor: 5 HP, 230/460V, 3Ph
- Overall Dimensions: 92-1/8″ x 79-7/8″ x 104-1/4″
- Weight: 3969 lbs
- And more… (Please provide the complete list of specifications)
HOW TO USE
- Set up the machine:
- Ensure the milling machine is securely placed on a level surface. Connect to the power supply and compressed air source (for power drawbar).
- Prepare the workpiece: Securely clamp the workpiece to the machine table using appropriate clamps and vices.
- Select cutting tools: Choose the correct cutting tool based on the material and desired cutting operation.
- Set up cutting parameters: Adjust spindle speed, feed rate, and depth of cut according to the material and tool specifications.
- Engage power feed (if needed): Activate the X-axis power feed for automated material removal.
- Perform milling operation: Carefully guide the cutting tool along the desired path, using the machine controls and DRO for precision.
- Coolant application: Apply coolant to the cutting area to prevent overheating and improve tool life.
- Chip removal: Regularly clear chips from the cutting zone to maintain visibility and prevent obstructions.
- Safety precautions: Always wear appropriate safety gear, including eye protection, ear protection, and protective clothing. Follow machine safety guidelines.
BENEFITS OF USING Jet JTM-1254VS Mill w/ NEWALL DP700 3X (K) DRO X Pwrfd & APD:
- Increased productivity: Efficient machining operations enhance productivity.
- Precise and accurate cuts: High-quality components ensure precise cuts.
- Durable construction: Built for long-term use with durable materials.
- Versatile capabilities: Suitable for a wide range of machining tasks.
- User-friendly operation: Simplifies use with intuitive controls and readouts.
FEATURES
- Variable speed control
- NEWALL DP700 DRO
- X-axis power feed
- Air power drawbar
- Certified Meehanite castings
- High-precision spindle bearings
- Hardened ground ways
- Automatic lubrication
- Quick spindle feed nut
- Adjustable spindle travel
