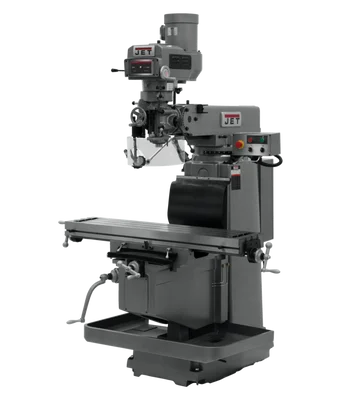

Jet JTM-1254VS Mill w/NEWALL DP700 3X (K) DRO & X Powerfeed (698144)

Description

Jet JTM-1254VS Mill w/NEWALL DP700 3X (K) DRO & X Powerfeed (698144) is a versatile vertical milling machine designed for precision and efficiency. Featuring a 12″ x 54″ table, variable speed control, and a powerful 5 HP motor, it’s ideal for handling a wide range of machining tasks. Equipped with a NEWALL DP700 3X (K) DRO and X-axis power feed, this machine ensures accuracy and productivity.

KEY FEATURES AND BENEFITS:

• Precision and Accuracy: NEWALL DP700 DRO and hardened ground ways deliver precise results.
• Efficiency: X-axis power feed speeds up production processes.
• Durability: Certified Meehanite castings and high-quality components ensure long-lasting performance.
• Ease of Use: Quick nut spindle feed, automatic lubrication, and user-friendly controls simplify operation.
• Versatility: Variable speed range and 12″ x 54″ table accommodate various workpiece sizes.

SPECIFICATIONS:

• Model Number: JTM-1254VS
• Spindle Taper: NT40
• Table Size: 12″ x 54″
• Motor: 5 HP, 230/460V, 3 Ph
• Spindle Speed Range: 80-3,800 RPM
• Power Feed: X-Axis
• Overall Dimensions: 92-1/8″ x 79-7/8″ x 104-1/4″
• Weight: 3969 lbs

HOW TO USE:

1. Set Up: Ensure the machine is properly leveled and secured on a stable surface. Connect to power supply and check for any loose components.
2. Workpiece Clamping: Secure the workpiece to the machine table using appropriate clamps or vices.
3. Tool Selection: Choose the correct cutting tool based on the material and desired cutting parameters.
4. Spindle Speed and Feed Rate: Set the spindle speed and feed rate according to the material and cutting tool.
5. Zero Offset: Establish the zero point for the DRO to accurately position the workpiece.
6. Machining: Perform milling operations by controlling the machine’s movement using the handles and power feed.
7. Coolant Application: Use coolant to dissipate heat and improve tool life.
8. Chip Removal: Regularly clear chips from the machine to prevent obstructions.
9. Machine Maintenance: Follow the manufacturer’s recommended maintenance schedule for optimal performance.

BENEFITS OF USING Jet JTM-1254VS Mill w/NEWALL DP700 3X (K) DRO & X Powerfeed (698144):

• Increased Productivity: X-axis power feed and efficient operation enhance productivity.
• Improved Accuracy: NEWALL DP700 DRO and hardened ways ensure precise cuts and dimensions.
• Long-lasting Performance: Durable construction and automatic lubrication extend machine life.
• User-friendly Operation: Quick nut spindle feed and easy-to-use controls facilitate operation.
• Versatility: Handles various machining tasks with different workpiece sizes and materials.

FEATURES:

• Certified Meehanite castings
• Precision bored and honed milling head
• High precision Class 7 spindle bearings
• Quick Spindle Feed Nut
• Three-stage power downfeed with automatic stop
• Heavy-duty spindle brake
• Precision hardened and ground ways and table
• Three Precision ground t-slots
• Turcite B on X & Y Axis
• Adjustable gibs throughout
• CSA/CUS Certified
• Spindle Guard
• Spindle Brake
• Automatic Lubrication
• Quick nut for spindle feed
• JET exclusive new casting
• Two 115V outlets
