Jet JTM-1254VS Mill w/ACU-RITE 203 DRO XY Pwrfds & APD (698052)

Description

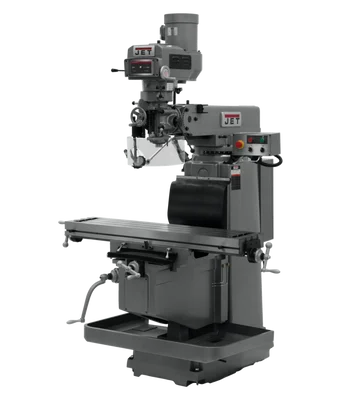

Jet JTM-1254VS Mill w/ACU-RITE 203 DRO XY Pwrfds & APD (698052) is a heavy-duty vertical milling machine designed for precision and efficiency. It features a 12″ x 54″ table size, NT40 spindle taper, and a variable speed range of 80-3,800 RPM. The machine includes ACU-RITE 203 DRO for accurate measurements, X & Y power feeds for automated table movement, and an air power drawbar for quick tool changes.

KEY FEATURES AND BENEFITS:

• ACU-RITE 203 DRO: Provides precise measurements for accurate work.
• X & Y Power Feeds: Increases productivity and efficiency through automated table movement.
• Air Power Drawbar: Allows for quick and easy tool changes, saving time.
• Variable Speed: Offers a wide range of spindle speeds to accommodate various cutting tasks.
• Automatic Lubrication: Reduces maintenance and extends the machine’s life.
• Quick Nut Spindle Feed: Enables efficient operation.

SPECIFICATIONS:

• Table size: 12″ x 54″
• Spindle taper: NT40
• Spindle speed range: 80-3,800 RPM
• Motor power: 5 HP, 230/460V, 3Ph
• Quill diameter: 4-1/8″
• Quill down feed rates: .0015, .003, .008 IPR
• Spindle travel: 5″
• Head movement: 90° R & L, 45° F & B
• Max distance spindle to table: 23″
• Distance spindle to column (max.): 27-3/4″
• Distance spindle to column (min.): 7-1/2″
• Collet capacity: 1/8″ – 1″
• Table longitudinal travel: 33-7/8″
• Table longitudinal travel with power feed: 28-1/4″
• Table cross travel: 15-1/3″
• T-slot centers: 2-1/2″
• Work table weight capacity: 925 lbs
• Travel of knee: 19-1/4″
• Travel of ram: 25″
• Saddle width: 25-5/8″
• Column width: 14-1/4″
• Prewired: 230V (surcharge applies for 460V re-wire)
• Overall dimensions: 92-1/8″ x 79-7/8″ x 104-1/4″
• Weight: 3969 lbs

HOW TO USE:

1. Set up the workpiece: Securely clamp the workpiece to the milling machine table using appropriate clamps and fixtures.
2. Select the correct cutting tool: Choose a cutting tool that matches the material being machined and the desired cutting parameters.
3. Adjust spindle speed: Set the spindle speed to an appropriate value based on the material and cutting tool.
4. Position the tool: Use the DRO and power feeds to accurately position the cutting tool relative to the workpiece.
5. Engage power feed: Turn on the power feed to automatically move the table or workpiece during the cutting process.
6. Start the machine: Turn on the spindle and begin the cutting operation.
7. Monitor the cutting process: Observe the cutting process for proper chip removal and tool wear. Make adjustments as needed.
8. Turn off the machine: Once the cutting process is complete, turn off the spindle and power feed.
9. Unclamp the workpiece: Carefully remove the workpiece from the machine table.

BENEFITS OF USING Jet JTM-1254VS Mill w/ACU-RITE 203 DRO XY Pwrfds & APD (698052):

• Improved precision and accuracy: The ACU-RITE DRO and power feeds enable precise control over the cutting process.
• Increased productivity: Automated table movement and quick tool changes enhance efficiency.
• Versatility: The variable spindle speed and various cutting tools allow for a wide range of applications.
• Durability and reliability: The heavy-duty construction and automatic lubrication ensure long-lasting performance.
• Ease of use: User-friendly features and controls simplify operation.

FEATURES:

• Certified Meehanite castings
• Precision bored and honed milling head
• High-precision Class 7 spindle bearings
• Quick spindle feed nut
• Three-stage power downfeed with automatic stop
• Heavy-duty spindle brake
• Precision hardened and ground ways and table
• Three precision ground t-slots
• Turcite B on X & Y axis
• Adjustable gibs throughout
• CSA/CUS certified
• Spindle guard
• Spindle brake
• Automatic lubrication
• Quick nut for spindle feed
• JET exclusive new casting
• Two 115V outlets for power feeds
• Spindle safety guard
• LED machine lamp
• Dual locks on all moveable surfaces
• Chip pan
• Draw bar
• Tool box with tools
