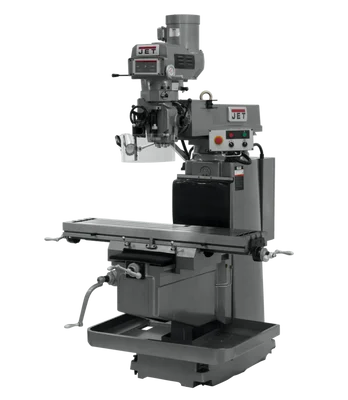

Jet JTM-1254VS Mill w/3-Axis ACU-RITE G-2 MILLPOWER CNC (691941)

Description

The Jet JTM-1254VS Mill w/3-Axis ACU-RITE G-2 MILLPOWER CNC (691941) is a high-performance vertical milling machine designed for machinists who demand precision and efficiency. It features a rigid Meehanite® cast iron base that minimizes vibration and ensures machining accuracy. The precision-bored and honed milling head, along with high-precision spindle bearings, further contribute to exceptional part quality.

KEY FEATURES AND BENEFITS:

• Integrated ACU-RITE G-2 Millpower CNC control system:
  • Large 12.1″ high-resolution display with 3D graphics.
  • User-friendly interface for easy program creation and editing.
  • USB and Ethernet connectivity for convenient data transfer.
  • Extensive tool library management and program preview.
• Wide range of capabilities:
  • 3D contouring for complex shapes.
  • G-code import for integration with CAD/CAM software.
  • Conversational programming for simplified part creation.
  • Built-in calculator for integrated calculations.
  • Optimized path and ramp feed for improved machining efficiency.
• Additional features:
  • Automatic lubrication system for reduced maintenance.
  • Three precision ground T-slots for workholding versatility.
  • Turcite B on X & Y axes for smooth table travel.
  • Adjustable gibs for wear compensation.
  • CSA/CUS certified for safety and electrical compliance.
  • Two 115V outlets for powering additional equipment.

SPECIFICATIONS:

• Table Size: 12″ x 54″
• Spindle Taper: R-8
• Quill Diameter: 4-1/8″
• Spindle Speed Range: 80 – 3,800 RPM
• Spindle Travel: 5″
• Table Travel (Longitudinal/Cross): 33-7/8″ x 15-1/3″
• Work Table Weight Capacity: 925 lbs.
• Motor: 5 HP, 3-phase
• Overall Dimensions: 104-1/4″ x 79-7/8″ x 92-1/8″
• Weight: 3696 lbs.

HOW TO USE:

• Step 1: Power on the machine and initialize the ACU-RITE G-2 MILLPOWER CNC control.
• Step 2: Load your machining program using USB or Ethernet connectivity.
• Step 3: Set up tools using the extensive tool library and manage datum offsets.
• Step 4: Use program preview to verify toolpaths and simulate the machining process.
• Step 5: Utilize conversational programming for straightforward part creation.
• Step 6: Monitor operations and utilize the built-in calculator for integrated calculations during machining.

BENEFITS OF USING Jet JTM-1254VS Mill w/3-Axis ACU-RITE G-2 MILLPOWER CNC (691941):

• Precision and Efficiency: Achieve high-quality results with ease and efficiency.
• Advanced Features: Simplify programming and enhance workflow with integrated CNC capabilities.
• Versatility: Ideal for various applications including prototype development and small-batch production.
• Durable Construction: Built to last with robust components and advanced safety certifications.

FEATURES:

• Large display, USB and Ethernet connectivity.
• 3D contouring, G-code import, conversational programming.
• Automatic lubrication system, precision ground T-slots, Turcite B on X & Y axes.
