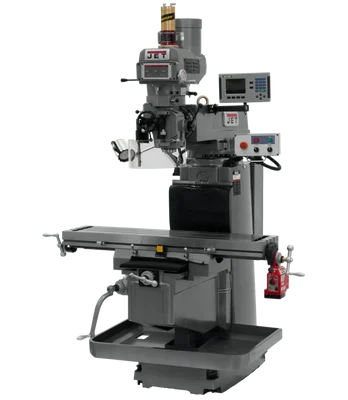

Jet JTM-1254VS 200S 3X-Q X PFD APDB Mill (698062)

Description

The Jet JTM-1254VS 200S 3X-Q X PFD APDB Mill (698062) is a high-precision vertical milling machine built for heavy-duty applications in professional workshops and machine shops. It boasts a durable construction with Certified Meehanite® castings for a solid base that minimizes vibration and ensures machining accuracy. The precision-bored and honed milling head, along with high-precision Class 7 spindle bearings, further contribute to exceptional machining results.

KEY FEATURES AND BENEFITS:

• User-Friendly Operation and Control:
  • Quick Spindle Feed Nut allows for fast and efficient adjustments.
  • ACU-RITE 200S Digital Readout (DRO) provides precise positioning.
  • Variable speed control (80-3,800 RPM) for handling a wide range of materials.
• Power and Automation:
  • 5 HP motor delivers ample power for demanding tasks.
  • Three-stage power downfeed with automatic stop ensures controlled tool feeding.
  • X-axis powerfeed automates feeding along the X-axis.
  • Pneumatic power drawbar simplifies tool changes.
• Versatility and Capacity:
  • Spacious 12″ x 54″ table accommodates a variety of workpiece sizes.
  • 5″ spindle travel and 15-1/3″ table cross travel offer ample working range.
• Additional Features:
  • CNC Compatibility: Can be equipped with 2 or 3-axis CNC controls for increased precision.
  • Durable Construction: Meehanite castings ensure long-lasting performance.
  • Precision Machining: High-quality components contribute to exceptional accuracy.
  • User-friendly Controls: Quick Spindle Feed Nut and DRO simplify operation.

SPECIFICATIONS:

• Product: Jet JTM-1254VS 200S 3X-Q X PFD APDB Mill (698062)
• Spindle Speeds: 80 – 3,800 RPM
• Digital Readout: ACU-RITE 200S
• Motor: 5 HP
• Table Size: 12″ x 54″
• Spindle Travel: 5″
• Table Cross Travel: 15-1/3″

HOW TO USE:

• Step 1: Secure the milling machine on a stable surface.
• Step 2: Connect the machine to a suitable power source.
• Step 3: Adjust the table height and secure workpieces using T-slots.
• Step 4: Set the spindle speed and position using the ACU-RITE 200S DRO.
• Step 5: Utilize the X-axis powerfeed for automated feeding.
• Step 6: Use the pneumatic power drawbar for quick tool changes.
• Step 7: Follow safety guidelines and maintain the machine regularly.

BENEFITS OF USING JET JTM-1254VS 200S 3X-Q X PFD APDB MILL:

• High-precision milling for professional workshops.
• Powerful 5 HP motor and variable speed control.
• Spacious table and ample travel for versatile machining tasks.
• User-friendly features for efficient operation.
• Durable construction and CNC compatibility for enhanced capabilities.

FEATURES:

• Certified Meehanite® castings for minimized vibration.
• Precision-bored and honed milling head for accuracy.
• High-precision Class 7 spindle bearings.
• Quick Spindle Feed Nut for fast adjustments.
• ACU-RITE 200S Digital Readout (DRO) for precise positioning.
• Variable speed control (80-3,800 RPM).
• 5 HP motor for power.
• Three-stage power downfeed with automatic stop.
• X-axis powerfeed for automated feeding.
• Pneumatic power drawbar for quick tool changes.
• Spacious 12″ x 54″ table.
• 5″ spindle travel and 15-1/3″ table cross travel.
• CNC compatibility for advanced machining.
