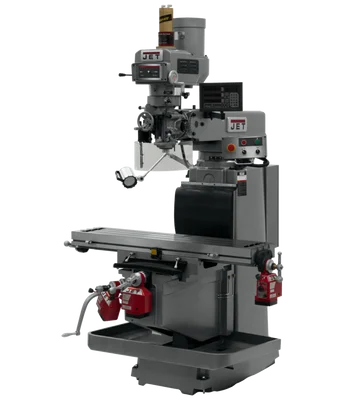

Jet JTM-1254RVS Vertical Mill w/ DP700 3X-Q X/Y/Z PFD APDB (698143)

Description

Jet JTM-1254RVS Vertical Mill w/ DP700 3X-Q X/Y/Z PFD APDB (698143) is a high-performance vertical milling machine designed for professional metalworking applications. It combines robust construction, precise engineering, and user-friendly features to deliver exceptional results.

KEY FEATURES AND BENEFITS:

• Durability & Precision: Constructed with Certified Meehanite® castings and precision-machined components for stability and accuracy.
• Variable Speed Operation: Motor with a wide range of speeds (80-3,800 RPM) for handling different materials and applications.
• Large Work Capacity: Spacious 12″ x 54″ table and 925 lb weight capacity for accommodating sizable and heavy-duty workpieces.
• Enhanced Control & Accuracy:
  • Newall DP700 digital readout for precise tool positioning.
  • Power feeds on X, Y, and Z axes automate movements for efficient machining.
• Effortless Tool Changes: Air power drawbar simplifies tool changes, saving time and improving workflow.
• Automatic Lubrication: Minimizes maintenance and extends machine life.
• User-Friendly Design: Quick-change spindle feed nut and innovative leveling system for ease of use.
• Safety Features: Includes safety guards, dual locks on movable surfaces, and a chip pan for operator safety.
• Versatility: 3-axis power feeds, swiveling head (90° left/right, 45° front/back), and R-8 spindle taper for a wide range of milling operations.

SPECIFICATIONS:

• Spindle Travel: 5 in.
• Table Cross Travel: 15-1/3 in.
• Quill Down Feed Rates: 0.0015-0.003-0.008 in. per revolution (IPR)
• Work Table Weight Capacity: 925 lbs.
• Range of Spindle Speeds: 80 – 3,800 RPM
• Overall Dimensions: 92-1/8 in. x 79-7/8 in. x 104-1/4 in. (L x W x H)
• Motor: 5 HP, 230/460V, 3-Phase

HOW TO USE:

Operate the Jet JTM-1254RVS DP700 effectively with these steps:

• Step 1: Adjust the variable speed to match material requirements.
• Step 2: Utilize the Newall DP700 DRO for precise tool positioning on X, Y, and Z axes.
• Step 3: Maintain optimal operation with the automatic lubrication system.
• Step 4: Use power feeds on X, Y, and Z axes for automated movements during milling operations.
• Step 5: Ensure safety with included safety features and dual locks.

BENEFITS OF USING Jet JTM-1254RVS Vertical Mill w/ DP700 3X-Q X/Y/Z PFD APDB (698143):

• Exceptional durability and stability with Meehanite® castings.
• Precision machining capabilities with variable speed control and Newall DP700 DRO.
• Efficient operation with power feeds and automatic lubrication.
• User-friendly design features for ease of use and maintenance.

FEATURES:

• Meehanite® castings and precision-machined components.
• Wide range of spindle speeds for versatility.
• Newall DP700 digital readout and power feeds on X, Y, and Z axes.
• Air power drawbar for quick tool changes.
• Automatic lubrication system and user-friendly design.
• Safety features and a chip pan for operator protection.
