Description

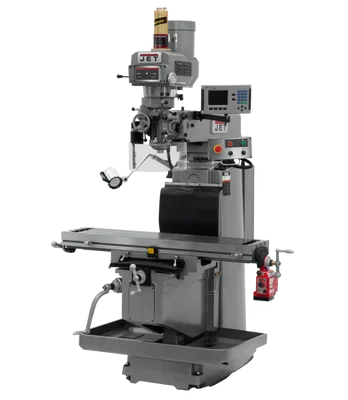

Jet JTM-1254RVS Mill w/ ACU-RITE 203 3X (K) DRO X Pwrfd & APD (698115) is a heavy-duty vertical milling machine designed for machinists who demand precision and durability. This 12″ x 54″ variable speed mill features a rigid Meehanite cast iron base for stability and vibration dampening. The precision bored and honed milling head with high-grade spindle bearings ensures accurate machining.
KEY FEATURES AND BENEFITS
- Large Table & Variable Speeds: The spacious 12″ x 54″ table accommodates various workpieces. Variable speed control allows for optimal cutting speeds on different materials.
- Digital Readout (ACU-RITE 203): The integrated digital readout provides precise positioning for improved accuracy and repeatability.
- Automatic Lubrication & Power Feed: Automatic lubrication minimizes maintenance, while the X-axis power feed ensures consistent material feeding.
- Air Power Drawbar & Easy Leveling: The air power drawbar simplifies tool changes, and the innovative JET casting design allows for easier machine leveling without lifting.
- Durable & Versatile: This machine boasts a powerful 5 HP motor, R-8 spindle taper, and a wide range of quill travels and table movements for tackling diverse milling tasks.
SPECIFICATIONS
- Spindle Taper: R-8
- Table Size (L x W): 12″ x 54″
- Spindle Speeds: 80 – 3,800 RPM
- Quill Travel: 5 inches
- Motor: 5 HP, 230/460V, 3-Phase
- Weight: 3,696 lbs.
HOW TO USE
- Installation: Following the user manual, securely position the Jet JTM-1254RVS on a stable and level surface. Ensure proper electrical connections based on voltage requirements.
- Workpiece Setup: Mount your workpiece securely onto the table using clamps or a vise, ensuring proper alignment and clearance with the cutting tool.
- Tool Selection & Installation: Select the appropriate cutting tool based on your material and desired operation. Install the tool securely into the R-8 spindle taper using the air power drawbar.
- Settings & Operation: Refer to the digital readout and control panel to set the desired spindle speed and feed rate for your specific material and cutting application. Engage the power feed (if applicable) and initiate milling operations using the machine controls.
- Safety: Always wear proper safety gear, including eye protection, gloves, and appropriate clothing. Ensure all guards are in place before operating the machine.
BENEFITS OF USING Jet JTM-1254RVS Mill w/ ACU-RITE 203 3X (K) DRO X Pwrfd & APD (698115)
- High-Precision Machining: The rigid construction, precision components, and digital readout contribute to accurate and repeatable results.
- Increased Efficiency: Automatic lubrication, power feed, and air power drawbar features reduce manual labor and improve workflow.
- Versatility: The large table size, variable speed control, and broad range of travel movements allow for tackling various milling projects.
- Durability & Reliability: The robust build and high-quality components ensure long-lasting performance in demanding environments.
- User-Friendly Features: The intuitive control panel, digital readout, and innovative leveling system enhance ease of use.
FEATURES
- Certified Meehanite Castings for a rigid base
- Precision bored and honed milling head for accuracy
- High precision Class 7 spindle bearings for smooth operation
- Quick Spindle Feed Nut for faster adjustments
- Three-stage power downfeed with automatic stop for controlled feeding
- Heavy-duty spindle brake for quick stopping power
- Precision hardened and ground ways and table for smooth travel
- Three precision ground T-slots for securing workpieces
- Turcite B on X & Y Axis for reduced friction
- Adjustable gibs throughout for maintaining tight tolerances
- CSA/CUS certified, meeting strict electrical safety guidelines
- Spindle Guard for operator safety
- LED Machine Lamp for improved workspace visibility
- Dual Locks on all moveable surfaces for stability
- Chip Pan for easy waste collection
- Drawbar for tool installation and removal
- Toolbox with included tools for basic maintenance
