Jet JTM-1050 Mill 3-Axis Newall DP700 DRO (Quill) XYZ-Axis (690234)

Description

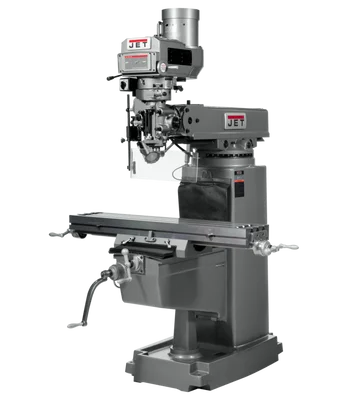

The Jet JTM-1050 Mill 3-Axis Newall DP700 DRO (Quill) XYZ-Axis (690234) is a versatile and powerful vertical milling machine ideal for a variety of metalworking applications. Its robust construction, featuring Meehanite® cast iron base and column, dampens vibrations and ensures machining accuracy. The large 10″ x 50″ table with a hardened and ground surface provides ample workspace for your projects.

KEY FEATURES AND BENEFITS:

• High-Precision Performance: The variable speed spindle allows you to adjust cutting speeds (70 to 3,800 RPM) to match different materials for optimal results. High-precision Class 7 bearings minimize runout and ensure machining accuracy. The precision bored and honed milling head contributes to smooth operation and clean cuts.
• Effortless Operation: Power feeds on the X, Y, and Z axes automate table and quill movement for hands-free machining, improving efficiency and reducing operator fatigue. The pneumatic power drawbar allows for quick and easy tool changes, minimizing downtime. The Newall DP700 digital readout (DRO) simplifies positioning of the workpiece and quill with digital readouts for all three axes.
• Additional Features: The internal coolant tank (coolant pump not included) allows for the use of a coolant system to keep cutting tools and workpieces cool, extending tool life and improving chip removal. The three-stage power downfeed with automatic stop provides precise control over quill movement. Adjustable gibs throughout the machine enable fine-tuning for long-lasting precision. Chrome lead screws on the X and Y axes ensure smooth table movement. The heavy-duty motor (3 HP) delivers ample power for various milling tasks. Includes a one-shot lubrication system for easy machine maintenance and a spacious toolbox to keep your tooling organized.

SPECIFICATIONS:

• Motor Power: 3 HP
• Table Size: 10” x 50” hardened and ground
• Spindle Speed Range: 70-3800 RPM
• Spindle Taper: R-8
• DRO System: Newall DP700 Digital ReadOut (XYZ axes)
• Power Feeds: X, Y, and Z axes
• Power Drawbar: Pneumatic
• Coolant System: Internal coolant tank (requires pump, not included)
• Lubrication: One-shot lubrication system
• Lead Screws: Chrome-plated on X and Y axes
• Spindle Bearings: High-precision Class 7
• Machine Base and Column: Meehanite® cast iron
• Gib Adjustments: Adjustable throughout
• Warranty: 2 years

HOW TO USE:

1. Setup: Place the mill on a stable surface and connect it to a suitable power source. Ensure all safety guards are properly installed.
2. Power On: Turn on the machine and select the desired spindle speed using the variable speed control.
3. Load Tool: Secure the cutting tool in the spindle using the pneumatic power drawbar and ensure it is correctly aligned.
4. Position Workpiece: Secure the workpiece on the table and use the Newall DP700 DRO to accurately position it along the X, Y, and Z axes.
5. Begin Machining: Use the power feeds on the X, Y, and Z axes for automated movement. Adjust feed rates based on the material and the desired cutting depth.
6. Depth Control: Utilize the three-stage power downfeed for consistent and precise depth control during operations.
7. Use Coolant: Fill the internal coolant tank if required and direct the coolant to the cutting area to improve chip removal and extend tool life.
8. Shutdown: After use, turn off the machine, clean the table, and perform routine maintenance, including lubrication, to ensure longevity.

BENEFITS OF USING Jet JTM-1050 Mill 3-Axis Newall DP700 DRO (Quill) XYZ-Axis (690234):

• Delivers precise and versatile machining for a wide range of metalworking applications.
• Stable operation with a Meehanite® cast iron base that dampens vibrations.
• Adjustable spindle speeds for optimal performance with various materials.
• Integrated DRO system and power feeds improve accuracy and efficiency.
• Large table size accommodates extensive projects and heavy workpieces.
• Supports coolant applications to enhance machining quality and tool longevity.
• Simplified maintenance with a one-shot lubrication system and spacious toolbox.
• Backed by a 2-year warranty for reliability and peace of mind.

FEATURES:

• Variable speed spindle ranging from 70 to 3800 RPM for versatile cutting.
• Meehanite® cast iron base and column for vibration-free operation.
• 10” x 50” hardened and ground table for precise and ample workspace.
• High-precision Class 7 spindle bearings for minimal runout and accurate cuts.
• Newall DP700 Digital ReadOut for accurate positioning on XYZ axes.
• Power feeds on X, Y, and Z axes for automated table and quill movement.
• Pneumatic power drawbar for quick and easy tool changes.
• Three-stage power downfeed with automatic stop for controlled quill movement.
• Internal coolant system for effective cooling during machining operations (pump not included).
• Chrome lead screws on X and Y axes for smooth and reliable table movement.
• Adjustable gibs for fine-tuning and maintaining precision.
• One-shot lubrication system for easy maintenance.
• Heavy-duty 3 HP motor for handling various milling tasks.
• Spacious toolbox for organized tooling and maintenance tools.
