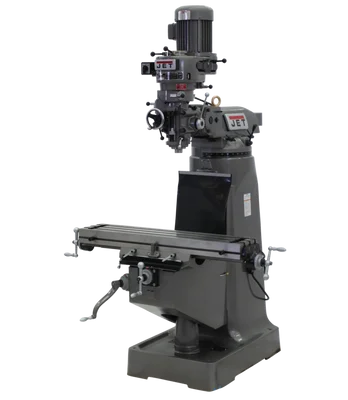

Jet JTM-1 Mill With 3-Axis Newall DP500 DRO (Quill) (692190)

Description

The Jet JTM-1 Mill With 3-Axis Newall DP500 DRO (Quill) (692190) is a versatile and reliable tool designed to elevate your metalworking capabilities. Whether you’re a seasoned professional or a passionate hobbyist, the JTM-1 offers the precision, power, and control you need to achieve outstanding results.

KEY FEATURES AND BENEFITS:

• Precision Engineering: Constructed with certified Meehanite castings and precision-bored components, ensuring accurate and repeatable results.
• Powerful Performance: The 2 HP motor and 16 spindle speeds (80-5440 RPM) provide ample power for a wide range of materials and operations.
• Enhanced Control: The Newall DP500 3-axis DRO system enables precise measurement and positioning on the X, Y, and Quill axes, minimizing errors and improving efficiency.
• User-Friendly Design: Features like the internally cooled spindle head, satin chrome dials, and one-shot lubrication system make the JTM-1 easy to operate and maintain.
• Durable Construction: Hardened and ground ways, along with a heavy-duty spindle brake, ensure longevity and consistent performance.

SPECIFICATIONS:

• Table Size: 9″ x 42″
• Quill Diameter: 3-3/8″
• Spindle Taper: R8
• Spindle Speeds: 16 (80 – 5440 RPM)
• Quill Down Feed Rates: .0015 – .003 – .006 IPR
• Travel (X, Y, Z): 23-7/8″, 12-1/2″, 17-1/2″
• Motor: 2 HP, 230V, 3-phase
• Dimensions: 57″ x 64″ x 82″
• Weight: 2,200 lbs

HOW TO USE:

1. Preparation: Securely mount your workpiece to the table using clamps or vises.
2. Tool Selection: Choose the appropriate milling cutter for your desired operation.
3. Speed and Feed Selection: Consult the speed and feed charts for your specific material and cutter.
4. DRO Calibration: Set the zero point on the DRO system for accurate positioning.
5. Operation: Use the handwheels or power feed to move the table and quill, carefully controlling the cutting process.
6. Lubrication and Maintenance: Regularly lubricate the machine and perform routine maintenance to ensure optimal performance and longevity.

BENEFITS OF USING THE Jet JTM-1 Mill With 3-Axis Newall DP500 DRO (Quill) (692190):

• Achieve precise and accurate results: in your metalworking projects.
• Increase efficiency and productivity: with the powerful motor and DRO system.
• Expand your capabilities: with a versatile machine that can handle a wide range of materials and operations.
• Enjoy a user-friendly experience: with intuitive controls and easy maintenance.
• Invest in a durable and reliable machine: that will serve you well for years to come.

FEATURES:

• Certified Meehanite Castings
• Precision Bored Milling Head
• High-Precision Spindle Bearings
• Three-Stage Power Downfeed
• Newall DP500 3-Axis DRO
• Internally Cooled Spindle Head
• One-Shot Lubrication System
• Built-In Coolant System
• Way Covers
