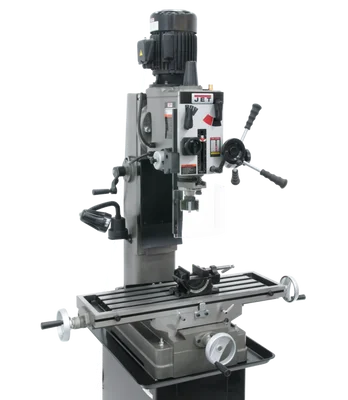

Jet JMD-45GH Mill/Drill w/Newall DP700 2-Axis DRO & X-feed (351151)

Description

The Jet JMD-45GH Mill/Drill w/Newall DP700 2-Axis DRO & X-feed (351151) is a robust and reliable machine engineered to handle demanding drilling applications with precision. Its heavy-duty construction, combined with advanced features like a geared head and Newall DRO system, ensures optimal performance and accuracy in industrial settings.

KEY FEATURES AND BENEFITS:

• Heavy-Duty Construction: Built to withstand the rigors of continuous use in demanding environments.
• 6-Speed Geared Head: Provides a wide range of spindle speeds for versatility across various materials.
• Square Column with Dovetail Ways: Ensures rigidity and stability, critical for precise drilling and milling operations.
• Newall DP700 2-Axis DRO: Simplifies precise positioning and measurement on the X and Y axes, enhancing accuracy and efficiency.
• X-Axis Power Feed: Automates the X-axis feed for consistent results and reduced operator fatigue during milling tasks.
• Tilting Head: Expands capabilities by allowing angled drilling and milling operations up to 90 degrees left and right.
• CSA/CUS Certified: Adheres to strict safety and electrical standards, ensuring a safe working environment.
• Additional Features: Spindle guard, work lamp, internal depth gauge, and quick-select gear shift levers for added convenience and functionality.

SPECIFICATIONS:

• Dimensions (L x W x H): 29 in. x 36 in. x 50 in.
• Weight: 727 lbs.
• Drilling Capacity: 1-1/2 in.
• End Mill Capacity: 3/4 in.
• Face Mill Capacity: 4 in.
• Spindle Taper: R-8
• Motor: 1-1/2 HP, 115V/230V, 1Ph
• Spindle Speeds: 6 speeds (65-1550 RPM)
• Table Size: 9-1/2 in. x 32-1/4 in.
• Table Travel (X-axis): 20-1/2 in.

HOW TO USE:

1. Setup: Securely mount the mill/drill on a sturdy stand or workbench. Ensure proper grounding and electrical connections.
2. Tooling: Install the appropriate drill bit or milling tool in the R8 spindle.
3. Workpiece: Securely clamp the workpiece to the table using appropriate clamps or vises.
4. Positioning: Use the Newall DP700 DRO to accurately position the workpiece under the spindle.
5. Drilling/Milling: Select the desired spindle speed using the gear shift levers. Engage the power feed (if applicable) and carefully lower the spindle to begin the drilling or milling operation.
6. Depth Control: Monitor the drilling depth using the built-in depth gauge.
7. Safety: Always wear appropriate safety gear, including eye and ear protection.

BENEFITS OF USING THE Jet JMD-45GH Mill/Drill w/Newall DP700 2-Axis DRO & X-feed (351151):

• Precision: Achieve accurate results in demanding applications.
• Versatility: Handle a wide range of drilling and milling tasks.
• Durability: Built to withstand heavy use and last for years.
• Efficiency: Power feed and DRO enhance productivity.
• Safety: CSA/CUS certified for peace of mind.

FEATURES:

• Heavy-duty design
• Geared head (6 speeds)
• Square column with dovetail ways
• Newall DP700 2-Axis DRO
• X-axis power feed
• Tilting head (90 degrees left and right)
• Spindle guard
• Work lamp
• Internal depth gauge
• Quick-select gear shift levers
