Jet JMD-18PFN Mill/Drill w/ Acu-Rite 203DRO & X Powerfeed (350120)

Description

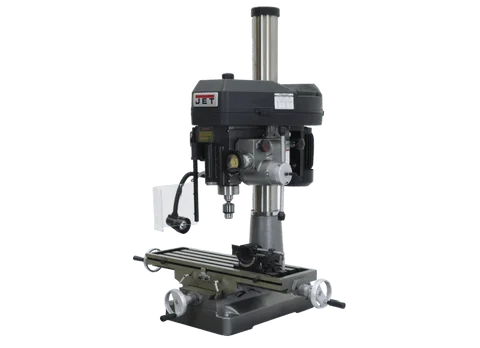

The Jet JMD-18PFN Mill/Drill w/ Acu-Rite 203DRO & X Powerfeed (350120) is a practical machine that combines the functions of a drill press and a milling machine. It’s designed for efficiency and flexibility, making it suitable for various tasks.

KEY FEATURES AND BENEFITS:

• Versatility: Functions as both a drill press and milling machine for diverse applications.
• Precision: Dual-coordinate table allows for accurate machining.
• Safety: Locking collet prevents tool slippage during cutting.
• Efficiency: X-axis power feed enhances productivity.
• Compact Design: Saves space without compromising performance.

SPECIFICATIONS:

• Model Number: JMD-18PFN
• Base Dimensions: 15-3/4 x 23-3/4 inches
• Column Diameter: 4-1/2 inches
• Face Mill Capacity: 3 inches
• Max Distance Spindle to Table: 28 inches
• Motor: 2 HP, 115/230V, 1 Ph, Prewired 115V
• Number of Spindle Speeds: 12
• Overall Dimensions: 47 x 40 x 51 inches
• Powerfeed: X-Axis
• Quill Diameter: 3 inches
• Quill Down Feed Rates: 0.0047, 0.007, 0.001 IPR
• Range of Spindle Speeds: 150 – 3,000 RPM
• Spindle Taper: R-8
• Spindle Travel: 5 inches
• Swing: 15-7/8 inches
• T-Slot Centers: 1-13/16 inches
• T-Slots Number and Size: 4 and 5/8 inches
• Table Longitudinal Travel: 20-1/2 inches
• Table Size: 9-1/2 x 32-1/4 inches
• Weight: 700 pounds
• Work Table Weight Capacity: 400 pounds

HOW TO USE:

• Set Up: Place the mill/drill on a stable, level surface. Secure it using the provided mounting points.
• Adjust Spindle Speed: Select the appropriate spindle speed for your cutting tool and material.
• Position Workpiece: Secure the workpiece on the table using clamps or vices.
• Adjust Cutting Tool: Install the desired cutting tool in the spindle and tighten securely.
• Engage Power Feed: For milling operations, activate the X-axis power feed for efficient material removal.
• Operate Controls: Use the feed handle and depth gauge for precise control over cutting depth.
• Safety Precautions: Wear appropriate safety gear, such as safety glasses and hearing protection.

BENEFITS OF USING Jet JMD-18PFN Mill/Drill w/ Acu-Rite 203DRO & X Powerfeed (350120):

• Cost-effective: Offers the functionality of two machines in one.
• Space-saving: Compact design ideal for smaller workshops.
• Versatile: Handles a wide range of machining tasks.
• Durable: Built with cast iron components for long-lasting performance.
• User-friendly: Easy to operate and maintain.

FEATURES:

• One-piece cast iron column for added support
• Belt cover with quick slide latch
• Base taper for easy cleanup
• Drill press angle vise
• UL Listed motor
• Extra large work table
• Positive quick-stop knob
• Internal depth gauge
• 360° head swivel
• Work lamp
• Heavy-duty power downfeed
• Manual fine feed
• 1/2” drill chuck, chuck arbor
• Draw bar
• Drill Chuck Guard
• Adjustable Carbide face mill
