Description

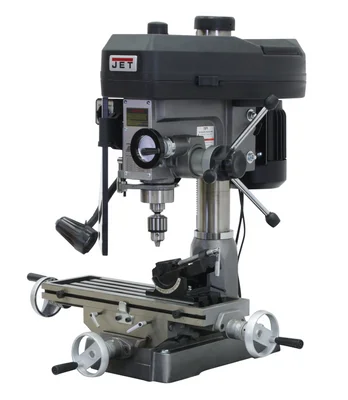

The Jet JMD-15 Mill/Drill With Newall DP500 DRO (350132) is a versatile benchtop machine that combines the functionality of a drill press with the precision of a milling machine. This space-saving solution is ideal for workshops and garages with limited space.
KEY FEATURES AND BENEFITS:
- Affordable Milling & Drilling: The JMD-15 offers both drilling and milling capabilities at a competitive price, making it a great choice for hobbyists and small shops.
- Precise Control: The included NewALL DP500 DRO (Digital ReadOut) ensures accurate positioning and repeatability for your projects.
- Large Worktable: The extra-large worktable (7-1/2″ x 23″) provides ample space for handling various materials.
- Versatile Functionality: The 360° swiveling head, variable speed control (12 speeds, 110-2580 RPM), and T-slotted table allow for a wide range of drilling and milling applications.
- Durable Construction: The one-piece cast iron column provides a stable base for precise machining.
SPECIFICATIONS:
- Drilling Capacity: 1 inch
- Face Mill Capacity: 2-1/2 inch
- End Mill Capacity: 1/2 inch
- Spindle Travel: 3-1/2 inch
- Table Size: 7-1/2 x 23 inch
- Number of Spindle Speeds: 12 (110-2580 RPM)
- Motor: 1 HP, 115/230V
- Overall Dimensions: 38 x 37-1/2 x 42 inch
- Weight: 440 lbs
HOW TO USE:
- Assembly: Refer to the JMD-15 user manual for detailed assembly instructions. Secure the machine to a sturdy workbench and ensure proper electrical connection.
- Material Setup: Secure your workpiece to the table using clamps and ensure it’s properly positioned for drilling or milling.
- Drilling: Choose the appropriate drill bit size and install it into the drill chuck. Adjust the spindle speed and depth gauge based on your material and desired hole depth. Engage the feed handle and drill the hole.
- Milling: Select the appropriate milling cutter and install it into the collet. Adjust the spindle speed and depth gauge according to your material and desired cut. Engage the feed handle and move the table to create the milled feature.
BENEFITS OF USING THE Jet JMD-15 Mill/Drill With Newall DP500 DRO (350132):
- Space-Saving Versatility: Combines drilling and milling functionalities in a single machine, saving valuable workshop space.
- Cost-Effective Solution: Offers both drilling and milling capabilities at a more affordable price compared to separate machines.
- Precise Machining: The DRO system and variable speed control ensure accurate results for your projects.
- Durable Construction: The cast iron column and overall build quality provide long-lasting performance.
FEATURES:
- NewALL DP500 DRO for precise positioning
- Large worktable (7-1/2 x 23 inch)
- 360° swiveling head for angled drilling and milling
- 12 spindle speeds (110-2580 RPM) for various materials
- Durable one-piece cast iron column
- Belt cover with quick slide latch for easy speed changes
- Easy-to-read external depth gauge
