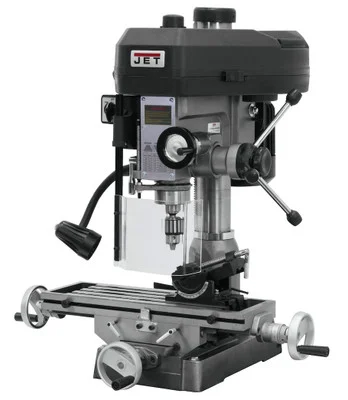

Jet JMD-15 15/230V 1PH 1HP Mill/Drill w/R-8 Taper (350017)

Description

The Jet JMD-15 15/230V 1PH 1HP Mill/Drill w/R-8 Taper (350017) is a versatile benchtop machine that combines the functionality of a drill press and a milling machine. It’s a space-saving solution for small workshops and hobbyists who need to perform both drilling and milling operations on a variety of materials.

KEY FEATURES AND BENEFITS:

• Compact Design: The JMD-15 Mill/Drill boasts a one-piece cast iron column for stability within a space-saving footprint, ideal for workshops with limited space.
• Versatility: Perform drilling and milling operations with ease. The 12 variable speed settings allow for precise control for various materials.
• Durability: The one-piece cast iron column ensures rigidity and vibration dampening for accurate results.
• R-8 Spindle Taper: Offers compatibility with a wide range of drill bits and milling cutters for tackling diverse projects.
• Large Worktable: The 14″ x 23″ worktable with T-slots provides ample space for securing workpieces of various sizes.
• 360° Swiveling Head: Enables angular drilling and milling for intricate machining tasks.
• Easy-to-Read Depth Gauge: Ensures accurate drilling depth control.
• Includes: Adjustable carbide face mill, drill press angle vise, and drawbar for immediate use.

SPECIFICATIONS:

• Drilling Capacity: 1″
• Face Mill Capacity: 2-1/2″
• End Mill Capacity: 1/2″
• Swing: 14-1/2″
• Max Distance Spindle to Table: 15″
• Spindle Taper: R-8
• Quill Travel: 3-1/2″
• Column Diameter: 3-5/8″
• Number of Spindle Speeds: 12
• Range of Spindle Speeds: 110-2,580 RPM
• Table Travel:
• X-axis: 14″
• Y-axis: 5-1/2″
• Worktable Surface Area: 7-1/2″ x 23″
• T-slots: 4 x 9/16″
• Base Dimensions: 12-1/2″ x 19-3/4″
• Motor: 1 HP, 1Ph, 115/230V
• Weight: Approximately 400 lbs

HOW TO USE:

1. Assembly: Refer to the user manual for detailed assembly instructions. Secure the mill/drill on a stable workbench and connect it to the appropriate power outlet.
2. Workpiece Setup: Mount your workpiece securely onto the worktable using clamps and the T-slots.
3. Drilling: Choose the appropriate drill bit for your material and secure it in the chuck. Adjust the spindle speed based on the material and desired drilling depth using the speed control knob. Lower the quill using the handwheel and engage the feed mechanism to begin drilling. Utilize the depth gauge for precise drilling depth control.
4. Milling: Install the desired milling cutter in the R-8 collet. Select the appropriate spindle speed and adjust the worktable position to achieve the desired cutting depth. Engage the feed mechanism and move the table along the X and Y axes to perform milling operations.

BENEFITS OF USING Jet JMD-15 15/230V 1PH 1HP Mill/Drill w/R-8 Taper (350017):

• Space-Saving Versatility: Combines drilling and milling capabilities in a compact benchtop design, ideal for small workshops.
• Cost-Effective Solution: Provides both drilling and milling functionality at a fraction of the cost of separate machines.
• Easy to Use: User-friendly design with intuitive controls allows for smooth operation.
• Durable Construction: One-piece cast iron column ensures stability and vibration dampening for accurate results.
• Wide Range of Applications: Suitable for drilling and milling various materials for diverse projects.

FEATURES:

• One-piece cast iron column for stability
• 12 variable speed settings for drilling and milling applications
• R-8 spindle taper for compatibility with a wide range of tooling
• 3-1/2″ quill travel for deep drilling and milling cuts
• 360° swiveling head for angular drilling and milling
• Easy-to-read depth gauge for accurate drilling
• Includes an adjustable carbide face mill, drill press angle vise, and drawbar
