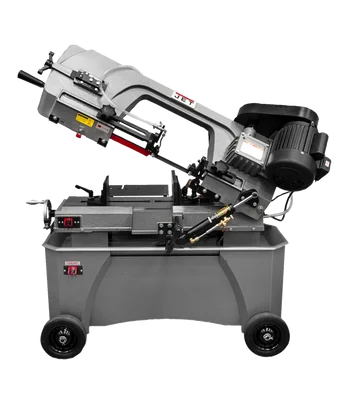

Jet HVBS-712 1PH 3/4 HP 7×12″ Horizontal/Vertical Bandsaw (414559)

Description

JET HVBS-712 1PH 3/4 HP 7×12″ Horizontal/Vertical Bandsaw (414559) is a versatile metalworking tool designed for both horizontal and vertical cutting applications. It offers precise cuts and efficient cooling, making it ideal for various industrial tasks.

KEY FEATURES AND BENEFITS:

• VERSATILE METAL CUTTING: Tackle various metalworking projects with horizontal and vertical cutting capabilities.
• DURABLE CONSTRUCTION: Built to last with flanged cast iron blade wheels and CSA/CUS safety certification.
• PRECISE CUTS: Adjustable ball bearing blade guides and a material stop ensure accurate repeat cuts.
• EFFICIENT COOLING: Integrated 1-gallon coolant system keeps your blade lubricated and workpiece cool.
• ANGLED CUTS: Miter your vise up to 45 degrees for precise angled cuts.
• MULTIPLE BLADE SPEEDS: Choose from four speed settings (86, 132, 178, 260 SFPM) for optimal cutting performance on different materials.

SPECIFICATIONS:

• CUTTING CAPACITY (W x D): 7 x 12 inches
• MOTOR: 3/4 HP, 1 Ph 115/230V
• BLADE SPEEDS (SFPM): 86, 132, 178, 260
• BLADE WHEEL DIAMETER: 11-3/4 inches
• COOLANT CAPACITY: 1 gallon
• OVERALL DIMENSIONS (L x W x H): 48 x 17 x 40 inches
• WEIGHT: 418 lbs

HOW TO USE:

1. ASSEMBLY: Refer to the user manual for detailed assembly instructions. Ensure the bandsaw is placed on a level and stable surface.
2. BLADE INSTALLATION: Select the appropriate blade size and type for your cutting project. Install the blade following the manufacturer’s instructions, ensuring proper tension and alignment.
3. MATERIAL SETUP: Secure your workpiece firmly in the vise or on the worktable using clamps. Adjust the material stop for repeatable cuts if needed.
4. ADJUSTMENTS: Choose the desired blade speed based on the material thickness. Make any final adjustments to the blade guides for optimal cutting performance.
5. OPERATION: Turn on the bandsaw and engage the coolant system if required. Guide the material steadily against the blade for precise cutting.
6. POWER OFF: Once finished, turn off the bandsaw and allow the blade to come to a complete stop before disengaging the coolant system and cleaning the work area.

BENEFITS OF USING JET HVBS-712 1PH 3/4 HP 7×12″ Horizontal/Vertical Bandsaw (414559):

• INCREASED VERSATILITY: Perform both horizontal and vertical cuts for various metalworking applications.
• ENHANCED ACCURACY: Achieve precise cuts with adjustable blade guides and a material stop.
• IMPROVED EFFICIENCY: The integrated coolant system extends blade life and optimizes cutting performance.
• DURABLE PERFORMANCE: Built with high-quality materials for long-lasting use.
• SAFE OPERATION: CSA/CUS certified for operator safety.

FEATURES:

• Horizontal and Vertical Cutting Modes
• Cast Iron Blade Wheels
• 4-Speed Motor
• Coolant System
• Adjustable Blade Guides
• Material Stop
• Mitering Vise (up to 45°)
• Includes 3/4″ Bi-Metal Blade
