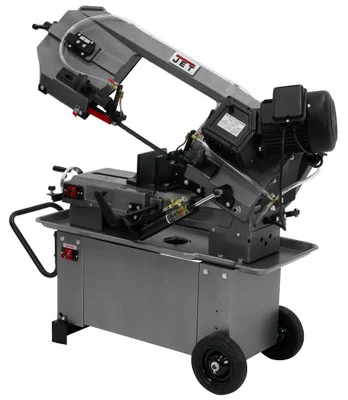

Jet HBS-812G 8×12″ Geared Head Horizontal/Vertical Bandsaw (413460)

Description

Jet HBS-812G 8×12″ Geared Head Horizontal/Vertical Bandsaw (413460) is a versatile and robust bandsaw designed to handle both horizontal and vertical cutting tasks with ease. Engineered for durability and precision, it’s the perfect tool for workshops, fabrication shops, and DIY enthusiasts seeking a reliable solution for cutting metal.

KEY FEATURES AND BENEFITS:

• Dual Cutting Modes: Effortlessly switch between horizontal and vertical cutting modes to accommodate various projects and workpiece sizes.
• Geared Head Transmission: Provides smooth and efficient power transfer, allowing for quick and easy speed adjustments with a simple lever.
• Heavy-Duty Construction: Built to last with a cast iron saw bow, head, and bed, ensuring stability and reducing vibrations during operation.
• Precise Cutting: Hardened and ground worm gear and adjustable blade guide system ensure accurate cuts every time.
• User-Friendly Design: Features a quick-lock vise for easy workpiece securing and a built-in blade brush for extended blade life.
• Enhanced Safety: Comes equipped with an auto shut-off feature for added peace of mind.

SPECIFICATIONS:

• Model Number: HBS-812G
• Stock Number: 413460
• Capacity: 8″ x 12″
• Blade Speeds (SFPM): 145, 200, 245
• Blade Size: 3/4″ x .035″ x 93″
• Blade Wheel Diameter: 11-1/2″
• Round Capacity (90°): 8″
• Round Capacity (45°): 5″
• Rectangle Capacity (90°): 8″ x 11-1/4″
• Rectangle Capacity (45°): 5″ x 8″
• Overall Dimensions (L x W x H): 51″ x 19″ x 43″
• Weight: 308 lbs.
• Motor: 1 HP, 115/230V, 1Ph

HOW TO USE:

• Preparation: Ensure the workpiece is securely clamped in the vise and the blade is properly tensioned.
• Speed Selection: Choose the appropriate blade speed based on the material being cut.
• Cutting Mode: Select horizontal or vertical cutting mode as needed.
• Start Cutting: Engage the power switch and gently guide the workpiece into the blade.
• Safety: Always wear safety glasses and use caution when operating the bandsaw.

BENEFITS OF USING THE Jet HBS-812G 8×12″ Geared Head Horizontal/Vertical Bandsaw (413460):

• Increased Productivity: Efficiently cut through various metals with ease.
• Versatility: Handle a wide range of cutting tasks with the dual cutting modes.
• Precision: Achieve accurate cuts for professional-grade results.
• Durability: Built to withstand heavy-duty use in demanding environments.

FEATURES:

• UL Listed Motor
• Swivel head miters 45° for both horizontal and vertical cutting.
• Large 8″ wheels and handle for easy movement.
• Vertical worktable.
• Coolant system.
• Adjustable material stop.
