Description

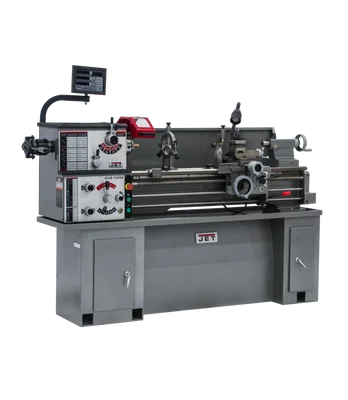

Jet GHB-1340A Lathe Machine with NEWALL C80 DRO Installed (321131) is a versatile and powerful geared head bench lathe designed for professional machinists and hobbyists alike. This machine boasts an enclosed gearbox for smooth operation, precision tapered roller bearings for tight tolerances, and a gap bed for handling larger diameter workpieces. The NEWALL C80 DRO (Digital ReadOut) simplifies measurement and ensures accuracy for even the most demanding projects.
KEY FEATURES AND BENEFITS:
- Precision and Control: Enclosed gearbox minimizes noise and vibration, while precision roller bearings and induction hardened bed ways deliver exceptional accuracy.
- Versatility: Gap bed design allows turning of larger diameter objects. Variable speeds and multiple feed rates provide control for various materials and applications.
- Digital Readout (DRO): The integrated NEWALL C80 DRO simplifies measurement and positioning of the cutting tool for increased efficiency and accuracy.
- Durability: Built-to-last construction with heavy-duty motor and high-quality components ensures long-lasting performance.
- Wide Range of Capabilities: Handles various metalworking tasks, including turning, facing, boring, and threading.
SPECIFICATIONS:
- Swing over Bed: 13 inches
- Swing over Cross Slide: 7-25/32 inches
- Swing Through Gap: 18-3/4 inches
- Distance Between Centers: 40 inches
- Spindle Speeds: 8 (range: 70-2,000 RPM)
- Motor: 2 HP, 230V, 1Ph
- Includes: Oil pan, tolerance test certificate, chucks, face plate, tool post, steady rest, follow rest, and more (see full list).
HOW TO USE:
- Assembly and Setup: Follow the manufacturer’s instructions for proper installation and safety precautions. Secure the lathe to a sturdy workbench and connect it to the appropriate power source.
- Workpiece Preparation: Mount the workpiece securely in the chuck or between centers, ensuring proper centering and alignment.
- Selecting Speed and Feed: Choose the appropriate spindle speed and feed rate based on the material, desired cut depth, and finish. Refer to the machine’s manual for recommended settings.
- Tool Selection and Positioning: Select the appropriate cutting tool for the desired operation (turning, facing, boring, etc.) and install it securely in the tool post. Use the DRO to precisely position the tool for the cut.
- Operation: Engage the spindle and start the cutting process. Utilize the carriage handwheels and compound slide to control the movement of the tool and create the desired shape on the workpiece.
- Safety: Always wear proper safety gear, including eye protection, gloves, and respirator when operating the lathe. Be mindful of loose clothing or jewelry that could get caught in the machine.
BENEFITS OF USING Jet GHB-1340A Lathe Machine with NEWALL C80 DRO Installed (321131):
- Increased Precision and Accuracy: The enclosed gearbox, precision bearings, and DRO system ensure consistent results for even the most intricate projects.
- Enhanced Versatility: Handles a wide range of metalworking tasks, making it a valuable asset for any workshop.
- Improved Efficiency: The DRO simplifies measurement and positioning, saving time and minimizing material waste.
- Durable Construction: Built with high-quality components for long-lasting performance and reliable operation.
- Professional Results: Delivers the precision and control needed to achieve professional-grade metalwork.
FEATURES:
- Enclosed gearbox for smooth, quiet operation
- Precision tapered roller bearings for tight tolerances
- Induction hardened and ground V-way bed for smooth travel
- Gap bed design for handling larger diameter workpieces
- Independent leadscrew and feed rod for precise control
- T-slotted compound slide with four-way tool post for versatility
- Automatic feeding and threading for efficient operation
- Digital ReadOut (DRO) for accurate measurement and positioning
- Includes a variety of standard accessories for immediate use
