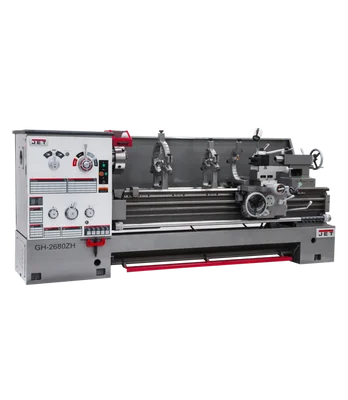

Jet GH-2680ZH Lathe w/ACU-RITE 203 DRO & Taper Attachment (321865)

Description

The Jet GH-2680ZH Lathe with ACU-RITE 203 DRO & Taper Attachment (321865) is a high-capacity lathe designed for precision and durability in metalworking applications. This powerhouse features a large 4-1/8″ spindle bore, a JET exclusive, allowing it to handle challenging projects with ease. The clutch-operated headstock with hardened, ground gears ensures smooth operation and long-lasting performance. The universal gearbox enables effortless selection of various threads (inch, metric, diametral, and module pitch) without the need for change gears, maximizing efficiency.

KEY FEATURES AND BENEFITS:

• Large 4-1/8″ spindle bore (JET exclusive) for handling large workpieces
• Powerful 10 HP motor for tackling demanding materials
• 12 spindle speeds (36-1600 RPM) for optimal cutting performance
• Universal gearbox for easy selection of inch, metric, diametral, and module pitch threads
• ACU-RITE 203 DRO for precise positioning
• Taper attachment for machining tapered workpieces
• Durable Meehanite castings for reduced vibration and stability
• Induction hardened and ground bed ways for exceptional wear resistance
• Includes a wide range of standard equipment for immediate use

SPECIFICATIONS:

• Spindle Bore: 4-1/8″
• Motor Power: 10 HP, 3-phase
• Spindle Speeds: 12 (Range: 36-1600 RPM)

HOW TO USE:

Follow these steps for optimal use of the Jet GH-2680ZH Lathe:

1. Ensure the lathe is securely set up and leveled.
2. Power on the lathe and adjust the spindle speed as per the material requirements.
3. Select the threading type using the universal gearbox.
4. Mount the workpiece securely using the appropriate chuck or faceplate.
5. Engage the clutch-operated headstock to start the spindle.
6. Utilize the ACU-RITE 203 DRO for precise positioning of the cutting tools.
7. Use the taper attachment if creating tapered workpieces.
8. Monitor the operation closely and make adjustments as necessary.

BENEFITS OF USING Jet GH-2680ZH Lathe with ACU-RITE 203 DRO & Taper Attachment (321865):

• Enhanced precision and efficiency in metalworking tasks.
• Versatile capabilities for handling diverse threading requirements.
• Durable construction ensures long-term reliability.
• Includes essential equipment for immediate use, reducing setup time.
• Powerful motor and variable speeds for optimal cutting performance.

FEATURES:

• Large spindle bore for accommodating substantial workpieces.
• Universal gearbox simplifies thread selection without gear changes.
• Hardened and ground gears and bed ways for durability.
• ACU-RITE 203 DRO enhances precision in machining.
• Taper attachment expands capabilities for tapered machining.
