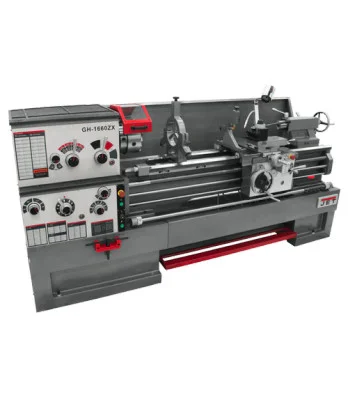

Jet GH-1660ZX Lathe with ACU-RITE 303 DRO (321388)

Description

Jet GH-1660ZX Lathe with ACU-RITE 303 DRO (321388) is a robust and versatile metalworking machine designed for precision machining. Equipped with a powerful 7.5 HP motor, a geared head for optimal speed control, and an ACU-RITE 303 DRO for precise measurements, this lathe is built to deliver exceptional performance and accuracy.

KEY FEATURES AND BENEFITS

• Powerful 7.5 HP Motor: Provides ample power for various cutting tasks.
• Geared Head: Offers a wide range of spindle speeds for optimal material handling.
• ACU-RITE 303 DRO: Ensures precise measurements and control.
• Cast Iron Construction: Guarantees stability and durability.
• Universal Gearbox: Eliminates the need for gear changes, saving time and effort.
• Large Spindle Bore: Accommodates larger workpieces, expanding machining capabilities.
• Removable Gap: Allows for machining larger diameter workpieces.

SPECIFICATIONS

• Swing Over Bed: 16 inches
• Swing Over Cross Slide: 10 inches
• Swing Through Gap: 25-7/8 inches
• Length of Gap: 12-1/4 inches
• Distance Between Centers: 60 inches
• Spindle Bore: 3-1/8 inches
• Spindle Mount: D1-8
• Spindle Taper (with Sleeve): MT-7 (MT-5)
• Number of Spindle Speeds: 12
• Range of Spindle Speeds (RPM): 25-1,800
• Number of Longitudinal and Cross Feeds: 12
• Range of Longitudinal Feeds (in./rev.): 0.0015 to 0.0913
• Range of Cross Feeds (in./rev.): 0.0006 to 0.0365
• Number of Inch Threads: 61
• Range of Inch Threads: 1-5/8 to 72
• Number of Metric Threads: 24
• Range of Metric Threads (mm): 0.05 to 20
• Maximum Tool Size: 1×1 inch
• Maximum Compound Slide Travel: 5-1/8 inches
• Maximum Cross Slide Travel: 9 inches
• Maximum Carriage Travel: 55 inches
• Tailstock Spindle Travel: 5 inches
• Tailstock Taper: MT-4
• Follow Rest Capacity: 1/2 to 3-1/2 inches
• Steady Rest Capacity: 3/8 to 7 inches
• Width of Bed: 13-3/8 inches
• Motor: 7.5 HP, 3-phase, 230/460V, prewired 230V
• Dimensions (L x W x H): 116.5 x 40 x 48 inches
• Weight: 5795 lbs

HOW TO USE

• Set Up the Lathe: Ensure the lathe is securely placed on a level surface. Connect the power supply and check the electrical connections.
• Mount the Workpiece: Securely clamp the workpiece between the lathe centers or use a chuck for round stock.
• Select the Desired Spindle Speed: Choose the appropriate spindle speed based on the material and cutting tool.
• Engage the Feed: Select the desired feed rate for the cutting operation.
• Start the Lathe: Gradually increase the spindle speed to the desired setting.
• Perform the Cutting Operation: Carefully feed the workpiece into the cutting tool, maintaining a steady and controlled motion.
• Monitor the Cutting Process: Observe the cutting conditions and adjust as needed to achieve the desired results.
• Stop the Lathe: Once the cutting operation is complete, bring the spindle to a complete stop before removing the workpiece.

BENEFITS OF USING Jet GH-1660ZX Lathe with ACU-RITE 303 DRO (321388)

• Precise and accurate machining for professional results.
• Increased productivity due to powerful motor and versatile features.
• Durable construction for long-lasting performance.
• Wide range of machining capabilities.
• User-friendly operation for efficient workflow.

FEATURES

• Powerful 7.5 HP motor
• Geared head
• ACU-RITE 303 DRO
• Cast iron construction
• Universal gearbox
• Large spindle bore
• Removable gap
• One-piece cast iron base
• High-quality cast iron bed ways
• Five-position automatic carriage stop
• 10″ 3-jaw chuck with top reversing jaw
• 12″ 4-jaw chuck
• 12″ face plate
• Four-way tool post
• Follow rest
• Large capacity steady rest
• Fully integrated coolant system
• Full length splash guard and coolant return
• Large easy to use foot brake
• Articulating halogen work lamp
• Centrally located controls with job button
• Threading dial
• Mounting pads and levelers
• Spindle sleeve (MT-7 to MT-5)
• Dead center
• Live center
• Tool box and adjusting tools
