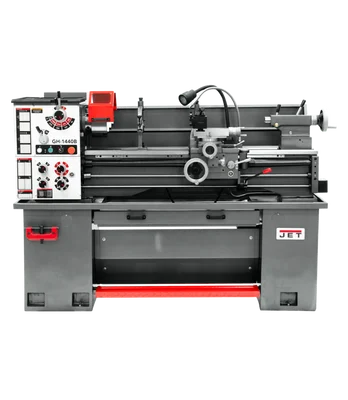

Jet GH-1440B Geared Head Bench Lathe with Stand & Foot Brake (331440)

Description

The Jet GH-1440B Geared Head Bench Lathe with Stand & Foot Brake (331440) is a robust and versatile machine ideal for various metalworking projects. Engineered for smooth, quiet operation, it boasts precision components like induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears for long-lasting performance.

KEY FEATURES AND BENEFITS:

• Durable Construction: Heavy-duty cast iron stand with a built-in foot brake provides stability and control during operation.
• Precision Machining: Delivers accurate results with features like precision bed ways and high-quality gears.
• User-Friendly Design: Electronic chuck key docking station prevents accidental startup and the emergency stop button ensures operator safety.
• Versatility: Includes a variety of standard accessories for tackling diverse metalworking tasks.

SPECIFICATIONS:

• Swing capacity: 14″ over bed, 8″ over cross slide, 20″ through gap
• Distance between centers: 36-7/8″
• Spindle speeds: 8-speed, 70-1900 RPM range
• Motor: 2 HP, 230V single phase
• Overall dimensions: 76-13/32″ x 29-29/32″ x 59-13/16″
• Weight: 1753 lbs

HOW TO USE:

1. Assembly and Setup: Follow the manufacturer’s instructions for proper assembly of the lathe on a sturdy workbench. Ensure the machine is level and securely fastened.
2. Material Selection and Preparation: Choose the appropriate metal workpiece for your project and secure it firmly in the chuck or between centers.
3. Speed and Feed Selection: Refer to the manual to select the optimal spindle speed and feed rate based on the material and desired cutting operation.
4. Machining: Engage the safety features and power on the lathe. Use cutting tools appropriate for the material and slowly manipulate the workpiece against the rotating tool to achieve the desired shape.
5. Safety: Always wear safety glasses and gloves when operating the lathe. Maintain a clean work area and keep loose clothing away from moving parts.

BENEFITS OF USING Jet GH-1440B Geared Head Bench Lathe with Stand & Foot Brake (331440):

• Precision and Accuracy: Delivers high-quality results for various metalworking projects.
• Durability: Built with robust components for long-lasting performance.
• Versatility: Handles a wide range of metalworking tasks with its extensive capabilities.
• Safety Features: Promotes safe operation with the electronic chuck key docking station and emergency stop button.
• User-Friendly Design: Offers ease of use for both experienced and novice metalworkers.

FEATURES:

• Heavy-duty cast iron stand with foot brake
• Precision induction hardened ground bed-ways
• Spindle roller bearings
• High-quality steel hardened gears in headstock
• Electronic chuck key docking station
• Emergency stop button
• 8-speed variable spindle speed
• Includes standard accessories: 8″ 3-Jaw Chuck, 8″ 4-Jaw Chuck, Steady Rest with Roller Bearings, Follow Rest, Quick Change Toolpost, 5pc Set of Holders, LED Work Lamp, MT3 Live Center, MT-5/3 Sleeve
