Description

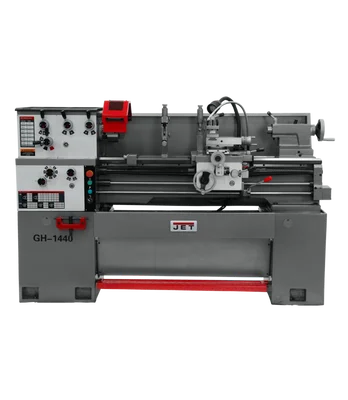

Jet GH-1440-1 Lathe with Collet Closer (323372) is a heavy-duty metalworking powerhouse designed for precision and longevity. Its geared head, hardened bedways, and included accessories empower both experienced machinists and dedicated hobbyists to achieve exceptional results.
KEY FEATURES AND BENEFITS:
- Precision Engineering: Induction hardened and ground V-way bed ensures smooth, accurate movement and long-lasting durability.
- Robust Construction: Over one ton in weight, with hardened gears and spindle roller bearings for stability and minimal vibration.
- Wide Range of Operations: 12 spindle speeds (40-1800 RPM) and ample threading capabilities (40 Inch, 23 Metric) handle diverse tasks.
- Safety First: Patented electronic chuck key docking station prevents operation without the key, and an emergency stop is easily accessible.
- Enhanced Convenience: Spindle jog button, inch-metric dials, and a full-length splash guard streamline your workflow.
- Complete Package: Includes 6″ 3-jaw chuck, 8″ 4-jaw chuck, 12″ faceplate, steady & follow rests, and more.
SPECIFICATIONS:
- Swing Over Bed: 14 inches
- Swing Over Cross Slide: 8-1/5 inches
- Distance Between Centers: 40 inches
- Spindle Bore: 1-1/2 inches
- Motor: 3 HP, 230V, 1PH
- Dimensions: 74-4/5 x 28 x 46 inches
- Weight: 2336 lbs
HOW TO USE:
- Preparation: Ensure the lathe is properly leveled and securely anchored. Install the chuck or desired workholding accessory.
- Workpiece Setup: Securely mount your workpiece in the chuck or between centers.
- Tool Selection: Choose the appropriate cutting tool for your desired operation.
- Speed and Feed Selection: Consult the lathe’s manual to determine the correct spindle speed and feed rate for your material and tool.
- Operation: Engage the power, adjust the tool position, and begin machining. Monitor the process carefully and make adjustments as needed.
- Safety: Always wear appropriate safety gear, including eye and ear protection. Never leave the machine unattended while it is running.
BENEFITS OF USING THE Jet GH-1440-1 LATHE with Collet Closer (323372):
- Professional Results: Achieve precise tolerances and high-quality finishes on a variety of metalworking projects.
- Durability: Built to last, minimizing downtime and maintenance costs.
- Versatility: Tackle a wide range of turning, facing, threading, and boring operations.
- Increased Productivity: Efficient design and features streamline your workflow.
- Safe Operation: Multiple safety features protect both the user and the machine.
FEATURES:
- Induction hardened and ground V-way bed
- Splined shafts for smooth power transmission
- D1-4 spindle with precision tapered roller bearings
- Independent leadscrew and feed rod
- Adjustable gibs for backlash control
- Safety on/off switch and emergency stop
- Electronic chuck key docking station
- Chuck guard
- Foot brake
- Gearbox for versatile threading and feeding
- Spindle jog button
- Coolant system with full-length splash guard
