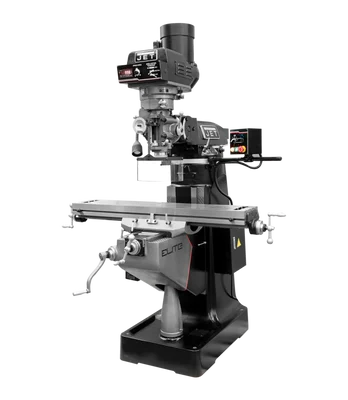

Jet EVS-949 Mill with Z-Axis JET Powerfeed (894302)

Description

The Jet EVS-949 Mill with Z-Axis JET Powerfeed (894302) is a high-performance milling machine designed for demanding applications. With a focus on accuracy, reliability, and operator safety, this machine is ideal for professional machinists, machine shops, and vocational training centers.

KEY FEATURES AND BENEFITS:

• Engineered for strict tolerance requirements, delivering exceptional precision in milling projects.
• Hand-scraped ways ensure smooth operation, and automatic lubrication extends machine life.
• Electronic spindle brake prevents accidental startups; spindle safety guard protects operators during operation.
• Robust Chromium Molybdenum spindle, variable speed pulleys for smooth transitions, and heat-treated lead screws for precise table movement.
• Features include variable speed control (60-5,000 RPM), spacious table (9″ x 49″), and a double nut design to minimize table backlash.

SPECIFICATIONS:

• Spindle Taper: R-8
• Quill Diameter: 3-3/8″
• Motor: 3 HP, 230V, 3 Phase
• Overall Dimensions: 68″ x 63″ x 84″
• Weight: 2,300 lbs.

HOW TO USE:

1. Ensure the electronic spindle brake is engaged before starting the machine.
2. Adjust the variable speed pulleys to the desired RPM for your material.
3. Utilize the Z-axis JET Powerfeed for automated feeding along the Z-axis.
4. Monitor and maintain lubrication with the automatic lubrication system as needed.
5. Always keep the spindle safety guard in place during operation for operator protection.

BENEFITS OF USING Jet EVS-949 Mill with Z-Axis JET Powerfeed (894302):

• Superior performance and longevity suitable for demanding applications.
• Enhanced operator safety features including electronic spindle brake and spindle safety guard.
• High precision and reliability for professional machining operations.

FEATURES:

• Accurate spindle assembly for exceptional precision.
• Reliable hand-scraped ways and automatic lubrication system.
• Electronic spindle brake and spindle safety guard for safe operation.
• Robust Chromium Molybdenum spindle and heat-treated lead screws.
• Variable speed control (60-5,000 RPM) and spacious 9″ x 49″ table.
