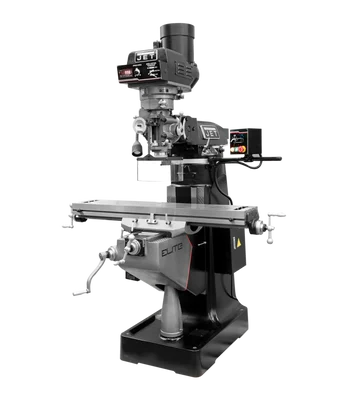

Jet EVS-949 Mill with Servo X, Y-Axis Powerfeeds (894377)

Description

The Jet EVS-949 Mill with Servo X, Y-Axis Powerfeeds (894377) is a high-performance milling machine designed for demanding applications. This Elite series mill boasts servo motors on the X and Y axes for automated control and precise positioning of the cutting tool. Built for accuracy and durability, the EVS-949 features hand-scraped ways that ensure smooth movement and minimize oil wear. The hardened spindle, constructed with chromium molybdenum, delivers exceptional rigidity and resists deflection during heavy cuts.

KEY FEATURES AND BENEFITS:

• Precision Spindle:
  • Class 7210 precision bearings minimize runout for exceptional accuracy.
  • The chromium molybdenum spindle construction offers superior strength and durability.
• Smooth Movement:
  • Hand-scraped Y and Z-axis ways provide a smooth and stable platform for your workpieces.
  • This meticulous process ensures proper oil retention for optimal lubrication.
• Automated Control:
  • Servo motors on the X and Y axes allow for automated control, streamlining your workflow and reducing operator fatigue.
• Durable Construction:
  • The hardened and ground table provides a stable base for your materials.
  • Meehanite castings throughout the machine maintain rigidity and resist deformation under heavy loads.
• Automatic Lubrication System:
  • An automatic lubrication system ensures all critical components are properly lubricated for extended machine life and optimal performance.
• Safety First:
  • The EVS-949 prioritizes operator safety with an electronic spindle brake that stops the spindle rotation upon activation.
  • An emergency stop button is readily accessible for immediate machine shutdown.
  • The mill also meets strict CSA safety standards with its certified electrical system.
• Standard Equipment:
  • The Jet EVS-949 comes equipped with a spindle safety guard for added protection, a halogen machine lamp for improved workspace visibility, and dual locks on all surfaces for enhanced security.

SPECIFICATIONS:

• Powerfeed: X & Y-Axis
• Table Size: 9 x 49 in.
• Spindle Taper: R8
• Quill Diameter: 3-3/8 in.
• Spindle Speeds: Variable Electronic, 60 – 5,000 RPM
• Quill Feed Rates: 0.0015 – 0.003 – 0.006 in/rev
• Spindle Travel: 5 in.
• Head Movement: 90° R & L, 45° F & B

BENEFITS OF USING Jet EVS-949 Mill with Servo X, Y-Axis Powerfeeds (894377):

• Ideal for a variety of metalworking applications, including milling flat surfaces, slots, and pockets; drilling and boring holes; facing and chamfering edges; and creating intricate shapes and contours.
• Robust build, advanced features, and user-friendly design make it a valuable asset for professional machinists, workshops, and fabrication shops.

FEATURES:

• Servo motors on X and Y axes for automated control
• Hand-scraped ways for smooth movement
• Chromium molybdenum spindle for rigidity
• Automatic lubrication system for extended machine life
• Electronic spindle brake and emergency stop button for operator safety
• CSA certified electrical system
• Includes spindle safety guard, halogen machine lamp, and dual locks for added security
