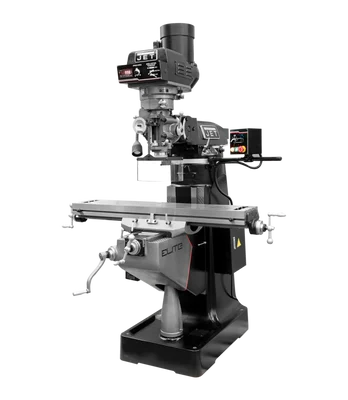

Jet EVS-949 Mill 3-Axis Newall DP700 (Quill) DRO XY Powerfeed (894362)

Description

The Jet EVS-949 Mill 3-Axis Newall DP700 (Quill) DRO XY Powerfeed (894362) is a high-performance vertical knee mill designed for precision machining applications. This heavy-duty mill features a cast iron base and column for superior stability and vibration dampening. The variable speed spindle allows for working with a wide range of materials, while the digital readout system (DRO) on three axes (X, Y, and quill) ensures precise positioning of the cutting tool.

KEY FEATURES AND BENEFITS:

• Accurate Machining: Features a high-precision spindle assembly with hand-scraped ways for smooth movement and minimal play.
• Increased Productivity: Includes JET powerfeeds on the X and Y axes for automated table movement, improving efficiency.
• Durable Construction: Built with a rigid cast iron base and column to minimize vibration and ensure machining accuracy.
• Operator Safety: Equipped with an electronic spindle brake to prevent accidental startups and a spindle safety guard for user protection.
• Long-lasting Performance: Automatic lubrication system ensures proper machine maintenance and extends tool life.

SPECIFICATIONS:

• Table size: 9 x 49 inches
• Spindle taper: R-8
• Quill diameter: 3-3/8 inches
• Spindle speed range: 60 – 5,000 RPM
• Quill travel: 5 inches
• Table longitudinal travel: 36 inches
• Table cross travel: 12 inches
• Motor: 3 HP, 230V, 3 Phase
• Weight: 2,300 lbs

HOW TO USE:

1. Ensure the machine is securely set up on a stable surface.
2. Power on the machine and perform a safety check, including the spindle safety guard and electronic spindle brake.
3. Refer to the Newall DP700 DRO system for positioning and input the necessary coordinates for your milling task.
4. Use the JET powerfeeds on the X and Y axes to automate table movements as required.
5. Engage the air-powered drawbar to change tools efficiently.
6. Monitor the automatic lubrication system to ensure all components are properly lubricated.
7. After use, power down the machine and perform any necessary maintenance checks.

BENEFITS OF USING Jet EVS-949 Mill 3-Axis Newall DP700 (Quill) DRO XY Powerfeed (894362):

• Precision Machining: Delivers accurate results with its high-quality spindle assembly and DRO system.
• Increased Efficiency: Automates table movement with JET powerfeeds, saving time and effort.
• Durable Performance: Built to last with a robust cast iron construction and automatic lubrication.
• Versatile Applications: Handles various milling tasks on different materials.
• Improved Safety: Features safety measures like a spindle brake and guard to protect operators.

FEATURES:

• Cast iron base and column for stability
• Variable speed spindle
• Digital readout (DRO) on X, Y, and quill axes
• JET powerfeeds on X and Y axes
• Electronic spindle brake
• Hardened and ground table
• USA-made air-powered drawbar
• Automatic lubrication system
• Spindle safety guard
